No. 3 engine mount removal note

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the clips shown in the figure and set the ground cable aside.
    Fig 1: Removing No. 3 Engine Mount Clips
    G09074283Courtesy of MAZDA MOTORS CORP.
  2. Remove the front under cover No. 2. (See FRONT UNDER COVER No. 2 REMOVAL/INSTALLATION .)
    CAUTION:
    • To prevent deformation of the oil pan, support the engine using the following methods.
      • When using an engine lifter, insert rubber of appropriate size (approx. 20 mm {0.79 in} thickness) between the engine lifter and the oil pan to support the oil pan.
      • When using a garage jack, place rubber of appropriate size (approx. 20 mm {0.79 in} thickness) on a batten which is large enough to cover and support the oil pan.
  3. Before removing the No. 3 engine mount, support the engine (oil pan) using a commercially available engine lifter or garage jack.
    Fig 2: Supporting Engine (Oil Pan) Using Commercially Available Engine Lifter Or Garage Jack
    G09074102Courtesy of MAZDA MOTORS CORP.
  4. Place alignment marks on the locations shown in the figure so that they can be assembled to the same positions as before removal.

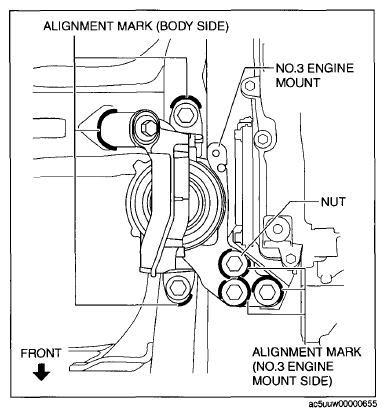

    Fig 3: Placing Alignment Marks On No. 3 Engine Mount Locations
    G09074285Courtesy of MAZDA MOTORS CORP.
    NOTE:
    • Paint so that the No. 3 engine mount is framed on the body side and the outline of the nut is framed on the No. 3 engine mount side.
  5. Remove the No. 3 engine mount.
