GENERATOR DISASSEMBLY/ASSEMBLY [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITH i-ELOOP)]: Notes

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Disassemble in the order indicated in the table.

Assemble in the reverse order of disassembly.

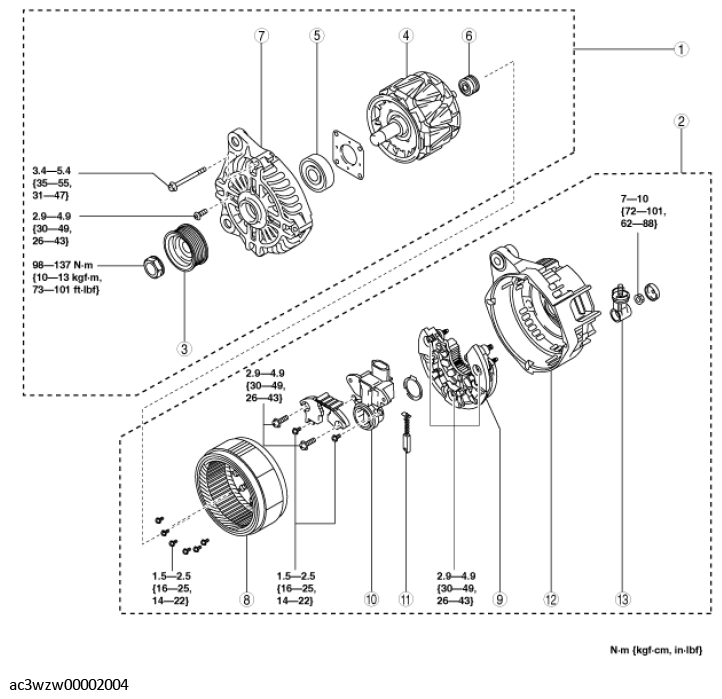

Fig 1: Disassembling/Assembling Generator Parts (With I-Eloop)

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Rotor component
2	Stator coil component
3	Pulley
4	Rotor
5	Front bearing
6	Rear bearing
7	Front cover
8	Stator coil
9	Rectifier
10	Regulator component
11	Brush (See Brush Disassembly Note .) (See Brush Assembly Note .)
12	Rear cover
13	Terminal B component
