Battery Removal/Installation
WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
- Remove in the order indicated in the table.
- Install in the reverse order of removal.

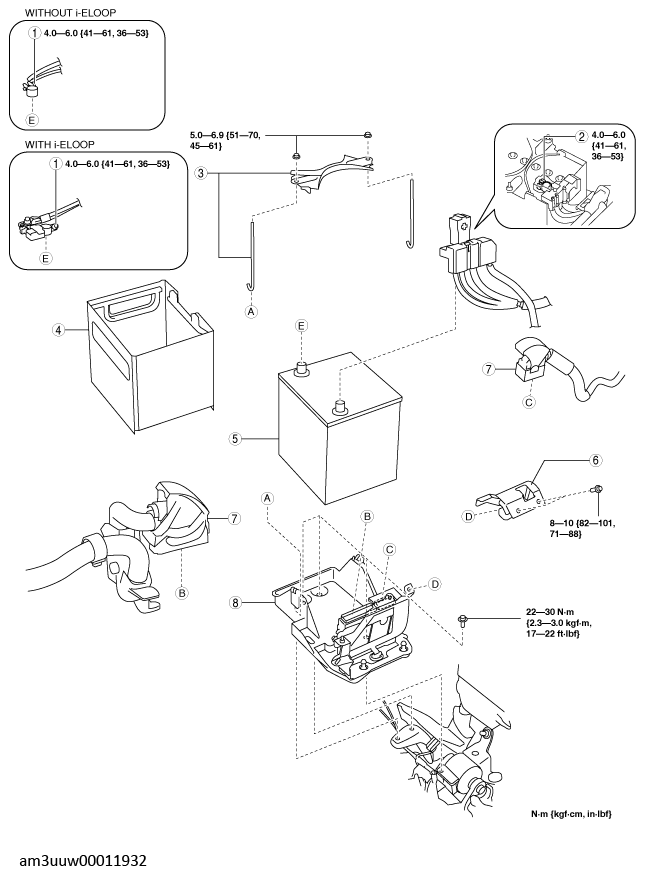

COMPONENT DESCRIPTION
| 1 | Negative battery cable (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .) |
| 2 | Positive battery cable |
| 3 | Battery clamp |
| 4 | Battery box (See Battery Box Installation Note .) |
| 5 | Battery (See Battery Removal Note .) |
| 6 | PCM cover (See PCM REMOVAL/INSTALLATION .) |
| 7 | PCM connector (See PCM REMOVAL/INSTALLATION .) |
| 8 | Battery tray and PCM component (See Battery Tray and PCM Component Removal Note .) |
