Battery Tray and PCM Component Removal Note

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the air cleaner, air hose and fresh air duct component. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
  2. Remove the bolt and nut securing the wiring harness protector to the battery tray.

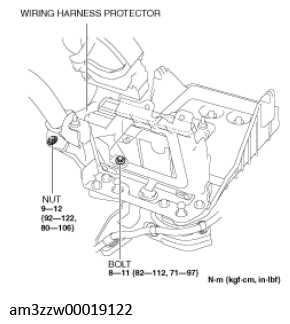

    Fig 1: Battery Tray And PCM Component Bolt And Nut With Torque Specifications
    G11450539Courtesy of MAZDA MOTORS CORP.
  3. Remove the three battery tray bolts so that the battery tray is free to move.
  4. Release the wiring harness clips at the three locations shown in the figure and remove the battery tray and PCM component.

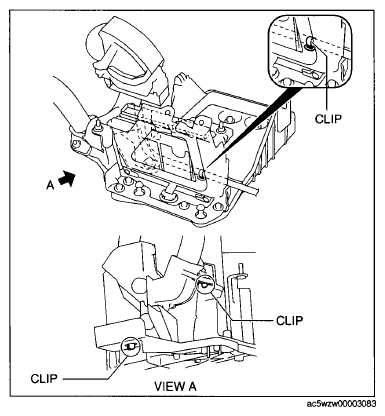

    Fig 2: Locating Battery Tray
    G09074485Courtesy of MAZDA MOTORS CORP.
  5. When replacing the battery tray with a new one, perform the following procedure:

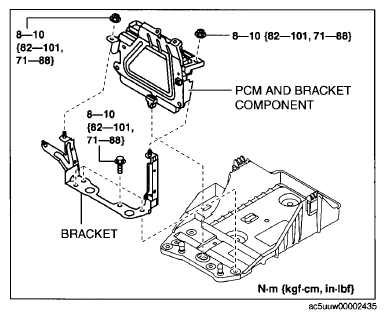

Fig 3: Battery Tray And PCM Component With Torque Specification
G09074486Courtesy of MAZDA MOTORS CORP.
  1. Remove the PCM and bracket component.
  2. Remove the bracket.
