Transfer oil seal (RH) No. 3

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Drain the transfer oil. (See TRANSFER OIL REPLACEMENT .)
  2. Remove the front drive shaft (RH). (See FRONT DRIVE SHAFT REMOVAL/INSTALLATION .)
  3. Remove the transfer oil seal (RH) No. 1. (See TRANSFER OIL SEAL (RH) NO. 1 .)
  4. Remove the oil seals using a tape-wrapped flathead screwdriver.

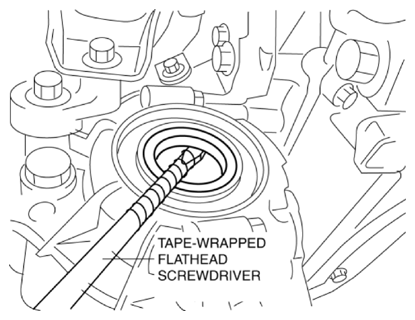

    Fig 1: Removing Oil Seals Using Tape-Wrapped Flathead Screwdriver
    G10936750Courtesy of MAZDA MOTORS CORP.
  5. Using the SST  and a hammer, tap the new seal into place.

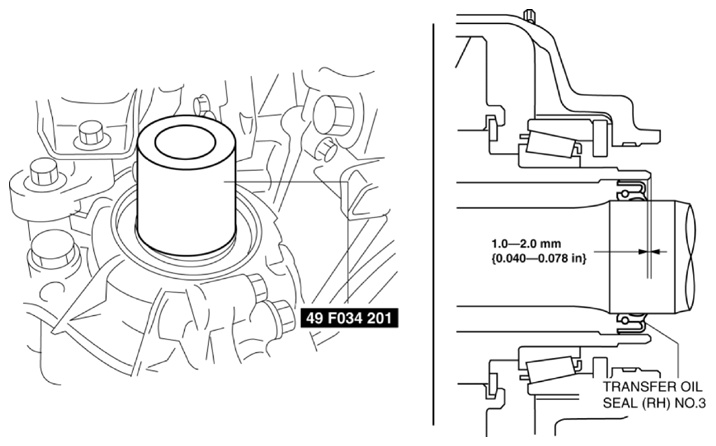

    Fig 2: Tapping Seal Into Place Using Hammer
    G10936751Courtesy of MAZDA MOTORS CORP.
  6. Apply the lip of the oil seal with transfer oil.
  7. Install the transfer oil seal (RH) No. 1. (See TRANSFER OIL SEAL (RH) NO. 1 .)
  8. Install the front drive shaft (RH). (See FRONT DRIVE SHAFT REMOVAL/INSTALLATION .)
  9. Add the specified amount and type of oil. (See TRANSFER OIL REPLACEMENT .)
