Transfer oil seal (RH) No. 1

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front drive shaft (RH). (See FRONT DRIVE SHAFT REMOVAL/INSTALLATION .)
  2. Insert a flathead screwdriver into the notch of the transfer and remove the oil seal (RH) No. 1.

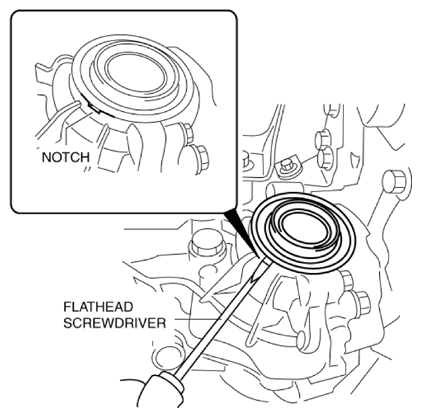

    Fig 1: Inserting Flathead Screwdriver Into Transfer Notch
    G10936745Courtesy of MAZDA MOTORS CORP.
  3. Install the new transfer oil seal (RH) No. 1 projection to within the range shown in the figure. (with projection type only)

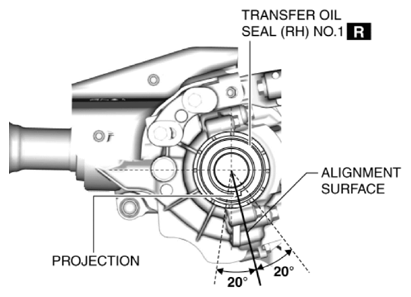

    Fig 2: Installing Transfer Oil Seal (RH) Projection
    G10936746Courtesy of MAZDA MOTORS CORP.
  4. Using the SST  and a hammer, tap the new seal into place.

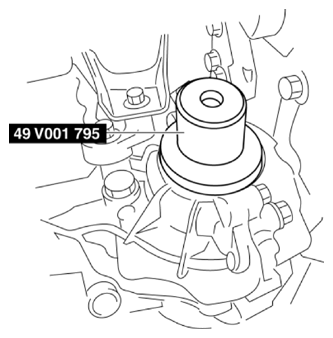

    Fig 3: Tapping Seal Into Place Using Hammer
    G10936747Courtesy of MAZDA MOTORS CORP.
  5. Coat the lip of the oil seal with transfer oil.
  6. Install the front drive shaft (RH). (See FRONT DRIVE SHAFT REMOVAL/INSTALLATION .)
