Transfer oil seal (RH) No. 2

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Drain the transfer oil. (See TRANSFER OIL REPLACEMENT .)
  2. Remove the front drive shaft (RH). (See FRONT DRIVE SHAFT REMOVAL/INSTALLATION .)
  3. Remove the transfer oil seal (RH) No. 1. (See TRANSFER OIL SEAL (RH) NO. 1 .)
  4. Insert a tape-wrapped flathead screwdriver into the lip area of the oil seal (RH) No. 2 as shown in the figure and remove the oil seal (RH) No. 2.

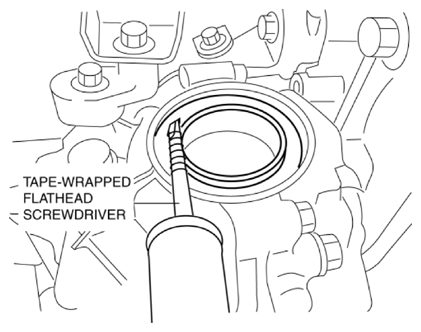

    Fig 1: Inserting Tape-Wrapped Flathead Screwdriver Into Oil Seal (RH) Lip Area
    G10936748Courtesy of MAZDA MOTORS CORP.
  5. Using the SST  and a hammer, tap the new seal into place.

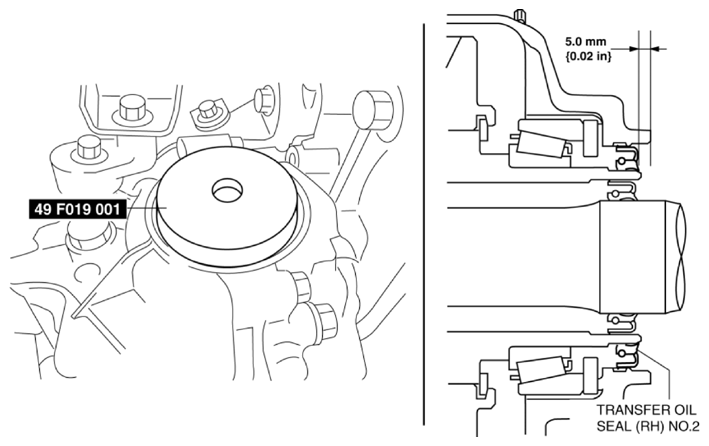

    Fig 2: Tapping Seal Into Place Using Hammer
    G10936749Courtesy of MAZDA MOTORS CORP.
  6. Apply the lip of the oil seal with transfer oil.
  7. Install the transfer oil seal (RH) No. 1. (See TRANSFER OIL SEAL (RH) NO. 1 .)
  8. Install the front drive shaft (RH). (See FRONT DRIVE SHAFT REMOVAL/INSTALLATION .)
  9. Add the specified amount and type of oil. (See TRANSFER OIL REPLACEMENT .)
