Rear Trailing Link Removal/Installation: Notes

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

Remove the floor under cover. (See FLOOR UNDER COVER REMOVAL/INSTALLATION .)
Remove in the order indicated in the table.
Install in the reverse order of removal.
Inspect the wheel alignment and adjust it if necessary. (See REAR WHEEL ALIGNMENT .)

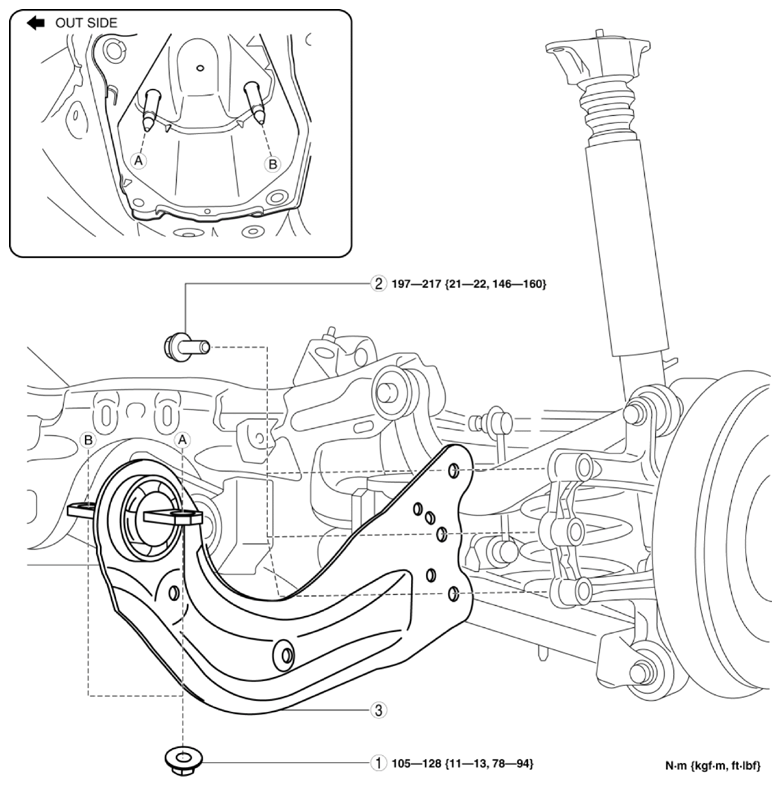

Fig 1: Identifying Trailing Link Bolts With Torque Specifications

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Rear trailing link installation nut
2	Rear trailing link installation bolt
3	Rear trailing link (See Rear Trailing link Installation Note .)
