Rear Door Removal/Installation: Notes

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

Removing the rear door without supporting it could cause the rear door to fall and cause serious injury. Always perform the procedure with at least one other person to prevent the rear door from falling.

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)

Remove in the order shown in the figure.

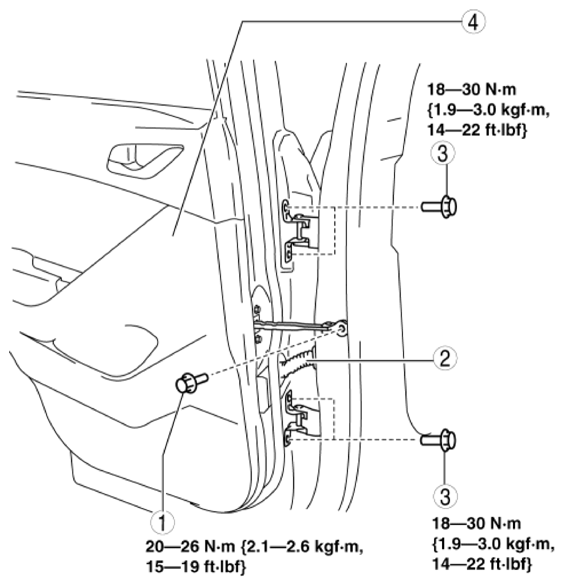

Fig 1: Identifying Rear Door, Connector And Bolts With Torque Specification

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Bolt A
2	Connector (See Connector Removal Note .)
3	Bolt B
4	Rear door

Install in the reverse order of removal.
Adjust the rear door. (See DOOR ADJUSTMENT .)
