Connector Removal Note

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

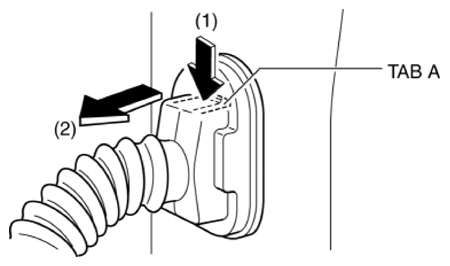

While pressing tab A in the direction of arrow (1), disconnect the connector in the direction of arrow (2).

Fig 1: Disconnecting Rear Door Connector
Courtesy of MAZDA MOTORS CORP.
