Front Drive Shaft (Double Offset Joint) Disassembly/Assembly: Notes
WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

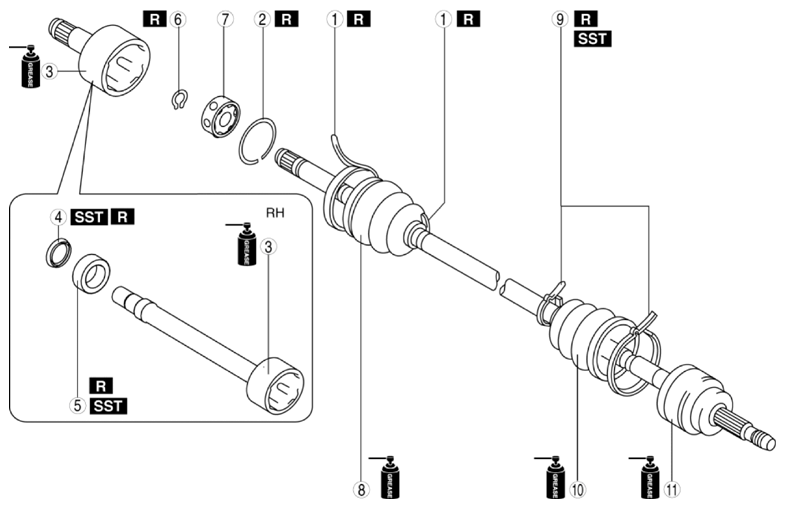

- Disassemble in the order shown in the figure.
- Assemble in the reverse order of disassembly.
Courtesy of MAZDA MOTORS CORP. COMPONENT DESCRIPTION
| 1 |
Boot band (transaxle side)
(See Boot Band (Transaxle Side) Disassembly Note .)
(See Boot Band (Transaxle Side) Assembly Note .) |
| 2 |
Clip
(See Clip, Outer Ring Disassembly Note .)
(See Outer Ring, Clip Assembly Note .) |
| 3 |
Outer ring
(See Clip, Outer Ring Disassembly Note .)
(See Outer Ring, Clip Assembly Note .) |
| 4 |
Dust cover
(See Dust Cover Disassembly Note .)
(See Dust Cover Assembly Note .) |
| 5 |
Bearing
(See Bearing Disassembly Note .)
(See Bearing Assembly Note .) |
| 6 |
Snap ring
(See Snap ring, Ball, Inner Ring, Cage Disassembly Note .)
(See Ball, Inner Ring, Cage, Snap Ring Assembly Note .) |
| 7 |
Ball, inner ring, cage
(See Snap ring, Ball, Inner Ring, Cage Disassembly Note .)
(See Ball, Inner Ring, Cage, Snap Ring Assembly Note .) |
| 8 |
Boot (transaxle side)
(See Boot (Transaxle Side) Disassembly Note .)
(See Boot (Transaxle Side) Assembly Note .) |
| 9 |
Boot band (wheel side)
(See Boot Band (Wheel Side) Disassembly Note .)
(See Boot Band (Wheel Side) Assembly Note .) |
| 10 |
Boot (wheel side)
(See Boot (Wheel Side) Disassembly Note .)
(See Boot (Wheel Side) Assembly Note .) |
| 11 |
Shaft and ball joint component |
