Dust Cover Disassembly Note

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the dust cover using a press and the SST  .

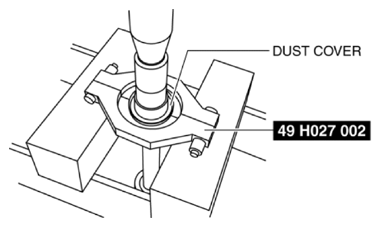

Fig 1: Removing Dust Cover Using Press
G10936610Courtesy of MAZDA MOTORS CORP.
