Rear Differential Location Index
WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

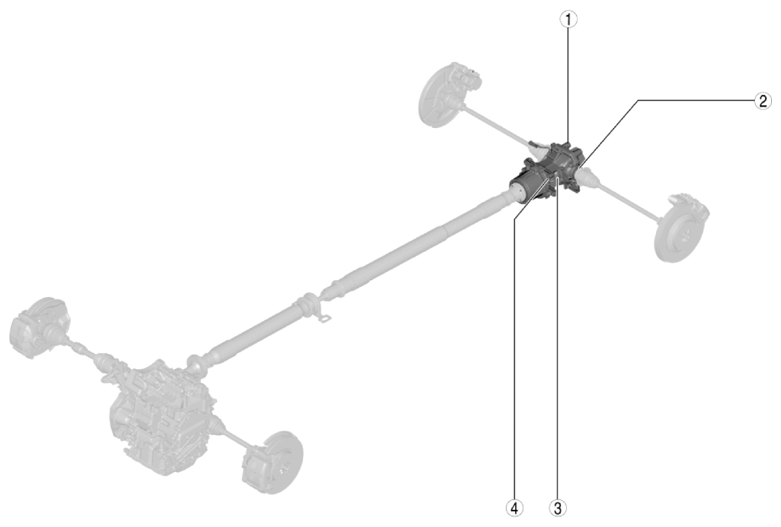

COMPONENT DESCRIPTION
| 1 | Differential oil (See DIFFERENTIAL OIL INSPECTION .) (See DIFFERENTIAL OIL REPLACEMENT .) |
| 2 | Oil seal (side gear) (See OIL SEAL (SIDE GEAR) REPLACEMENT .) |
| 3 | Rear differential (See REAR DIFFERENTIAL REMOVAL/INSTALLATION .) (See REAR DIFFERENTIAL DISASSEMBLY .) (See REAR DIFFERENTIAL ASSEMBLY .) |
| 4 | Oil seal (coupling component) (See OIL SEAL (COUPLING COMPONENT) REPLACEMENT .) |
