Oil Seal (Coupling Component) Replacement

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Drain the differential oil into a container.
  2. Remove the coupling component. (See COUPLING COMPONENT REMOVAL/INSTALLATION .)
  3. Remove the oil seal from the differential carrier using a screwdriver or similar tool.
  4. Apply differential oil to the new oil seal lip.
  5. Install the new oil seal to the differential carrier using the SST.

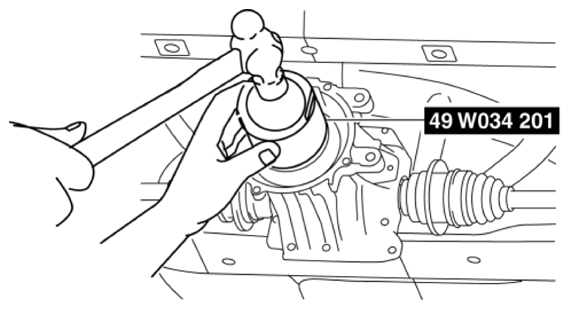

    Fig 1: Installing Oil Seal To Differential Carrier
    G10936722Courtesy of MAZDA MOTORS CORP.
  6. Install the coupling component. (See COUPLING COMPONENT REMOVAL/INSTALLATION .)
  7. Add the specified differential oil from the filler plug. (See DIFFERENTIAL OIL REPLACEMENT .)
