Rear Differential Assembly: Notes
WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
- The engine stand is equipped with a self-lock mechanism, however, if the rear differential is in a tilted condition, the self-lock mechanism could become inoperative. If the rear differential unexpectedly rotates it could cause injury, therefore do not maintain the rear differential in a tilted condition. When turning the rear differential, grasp the rotation handle firmly.
CAUTION:
- Clean away the old sealant before applying the new sealant.
- Install the rear cover before the applied sealant starts to harden.
- Allow the sealant to set at least 30 minutes after installation before filling the differential with the specified oil.
- Assemble in the order indicated in the table.

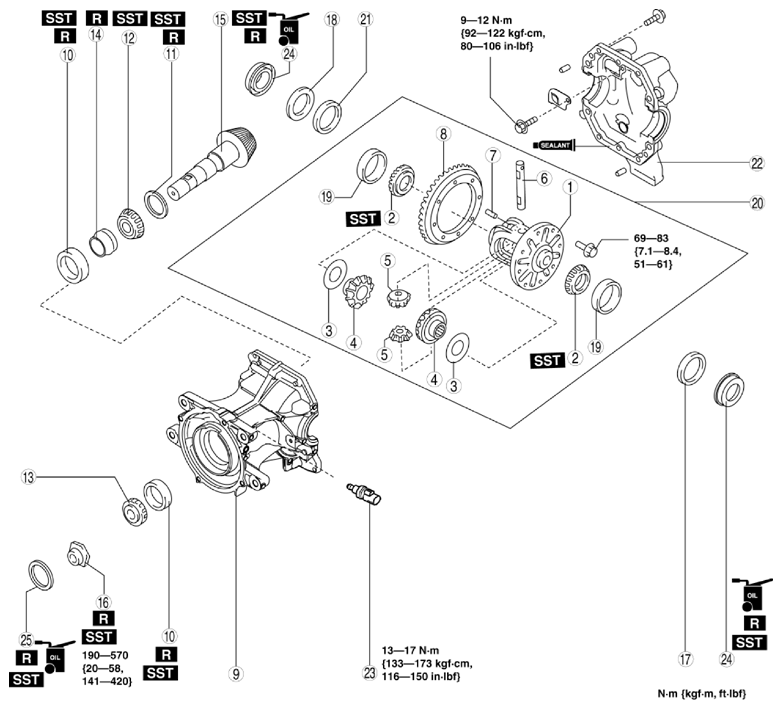

COMPONENT DESCRIPTION
| 1 | Gear case |
| 2 | Side bearing inner race (See Side Bearing Inner Race Assembly Note .) |
| 3 | Thrust washer (See Ring Gear Assembly Note .) |
| 4 | Side gear |
| 5 | Pinion gear |
| 6 | Pinion shaft |
| 7 | Pin |
| 8 | Ring gear (See Bearing Outer Race Assembly Note .) |
| 9 | Differential carrier |
| 10 | Bearing outer race (See Bearing Outer Race Assembly Note .) |
| 11 | Spacer (See Spacer, Inner Race Assembly Note .) |
| 12 | Bearing inner race (rear) (See Spacer, Inner Race Assembly Note .) |
| 13 | Bearing inner race (front) |
| 14 | Collapsible spacer |
| 15 | Drive pinion |
| 16 | Locknut (See Locknut Assembly Note .) |
| 17 | Adjusting shim (LH) (See Adjust Shim Assembly Note .) |
| 18 | Spacer |
| 19 | Side bearing outer race |
| 20 | Rear differential component |
| 21 | Adjusting shim (RH) (See Adjust Shim Assembly Note .) |
| 22 | Rear cover (See Oil Seal Assembly Note .) |
| 23 | Differential oil temperature sensor |
| 24 | Oil seal (side gear) (See Oil Seal Assembly Note .) |
| 25 | Oil seal (Coupling component) (See Oil Seal Assembly Note .) |
