Bearing Outer Race Assembly Note

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Press in the bearing outer race using the SSTs  and a press.

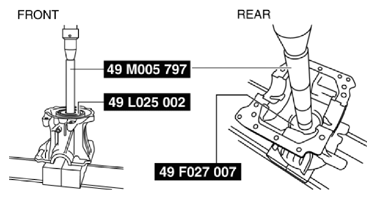

Fig 1: Pressing In Bearing Outer Race
G10936706Courtesy of MAZDA MOTORS CORP.
