Indicator Light Inspection

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

The indicator light is built into the electric parking brake switch. If there is any malfunction, replace the electric parking brake switch.

Remove the electric parking brake switch. (See ELECTRIC PARKING BRAKE SWITCH REMOVAL/INSTALLATION .)
Apply battery positive voltage to electric parking brake switch terminal K, and connect terminal L to ground.

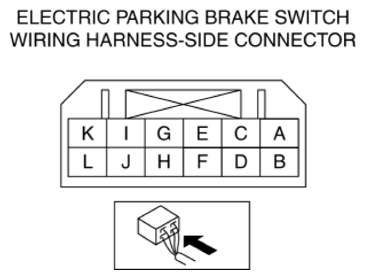

Fig 1: Identifying Electric Parking Brake Switch Wiring Harness-Side Connector
Courtesy of MAZDA MOTORS CORP.
Verify that the indicator light turns on.

Fig 2: Identifying Indicator Light Button
Courtesy of MAZDA MOTORS CORP.
- If there is any malfunction, replace the electric parking brake switch.
