Electric Parking Brake Switch Removal/Installation

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the upper panel. (See UPPER PANEL REMOVAL/INSTALLATION .)
  2. Remove the screws.

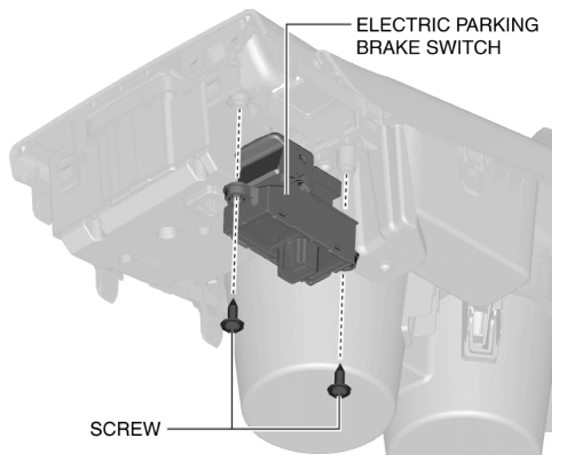

    Fig 1: Removing Electric Parking Brake Switch Components
    G10936910Courtesy of MAZDA MOTORS CORP.
  3. Remove the electric parking brake switch.
  4. Install in the reverse order of removal.
