Continuity Inspection

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

Remove the upper panel and electric parking brake switch as a single unit. (See ELECTRIC PARKING BRAKE SWITCH REMOVAL/INSTALLATION .)
Verify that the continuity is as indicated in the table.

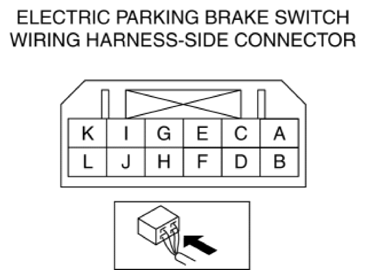

Fig 1: Identifying Electric Parking Brake Switch Wiring Harness-Side Connector
Courtesy of MAZDA MOTORS CORP.

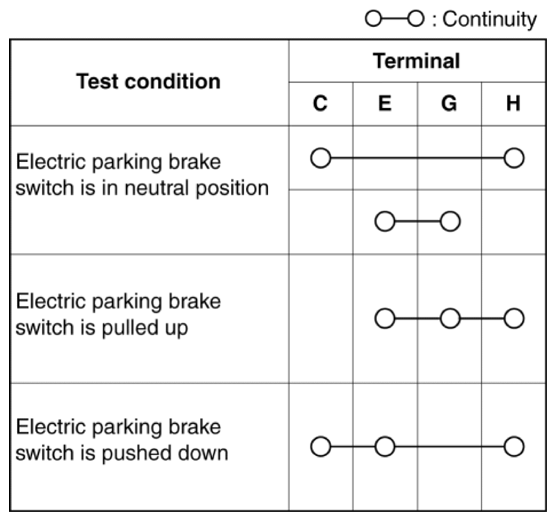

Fig 2: Electric Parking Brake Switch Wiring Harness-Side Connector Terminals Continuity Chart
Courtesy of MAZDA MOTORS CORP.
- If not as indicated in the table, replace the electric parking brake switch.
