Coupling Component Removal/Installation: Notes

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

If the characteristic value of a new coupling component is not input to the AWD control module or the characteristic value is input incorrectly after replacing the coupling component, it could result in the following conditions:
- The system does not operate normally.
- A problem with durability of the coupling component occurs.
  - After replacing the coupling component, read out the characteristic value of a new coupling component and write it to the AWD control module. (See COUPLING COMPONENT CALIBRATION DATA WRITING .)
  - Read out the characteristic value of the coupling component from the label or mark shown in the figure.

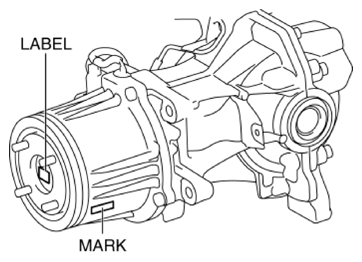

Fig 1: Identifying Coupling Component Label

Courtesy of MAZDA MOTORS CORP.

NOTE:

The AWD control module stores the characteristic value of the coupling component before replacement.
If the characteristic value of a new coupling component is not written, the AWD control module does not store the value.

Drain the rear differential oil into a container.
Remove the propeller shaft. (See PROPELLER SHAFT REMOVAL/INSTALLATION .)
Remove in the order indicated in the table.
Install in the reverse order of removal.
Add rear differential oil. (See DIFFERENTIAL OIL REPLACEMENT .)
If the coupling component is replaced, write the characteristic value of a new coupling component to the AWD control module. (See COUPLING COMPONENT CALIBRATION DATA WRITING .)

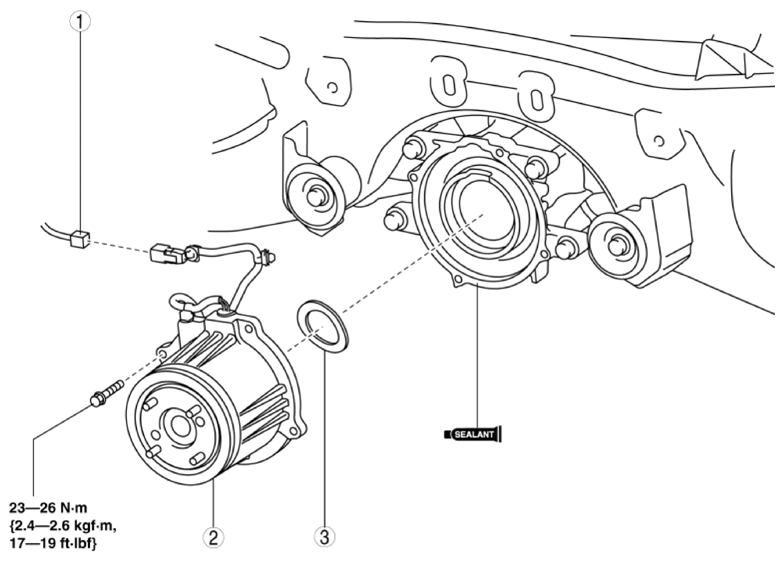

Fig 2: Coupling Components And Bolts With Torque Specifications

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	AWD solenoid connector
2	Coupling component (See Coupling Component Removal Note .) (See Coupling Component Installation Note .)
3	Washer
