Coupling Component Removal Note

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Support the coupling unit with a transmission jack.
  2. Cut away the coupling unit using an oil pan seal cutter.

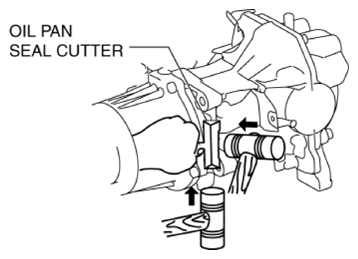

    Fig 1: Cutting Coupling Unit Using Oil Pan Seal Cutter
    G10936758Courtesy of MAZDA MOTORS CORP.
