Purge Solenoid Valve Removal/Installation: Notes

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION .)
Remove the air cleaner and air hose as a single unit. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)
Disconnect the high pressure fuel pump connector.
Disconnect the harness clip as shown in the figure.

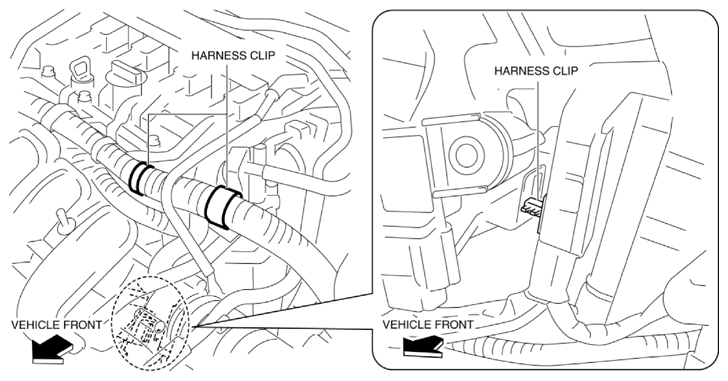

Fig 1: Identifying Purge Solenoid Valve Hose Harness Clips
Courtesy of MAZDA MOTORS CORP.

Remove in the order indicated in the table.

SKYACTIV-G 2.0

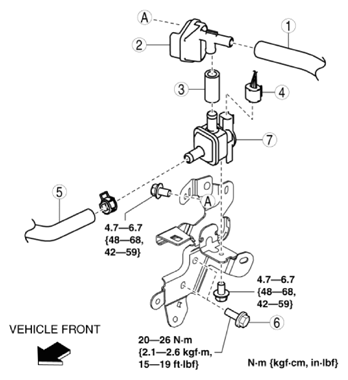

Fig 2: Purge Solenoid Valve Related Components (SKYACTIV-G 2.0)

Courtesy of MAZDA MOTORS CORP.

SKYACTIV-G 2.5

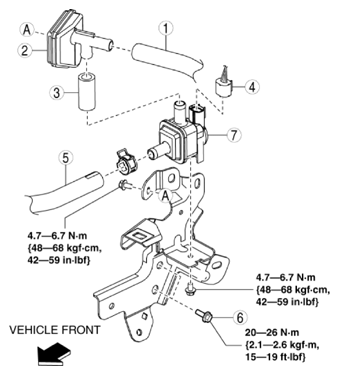

Fig 3: Purge Solenoid Valve Related Components (SKYACTIV-G 2.5)

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Evaporative hose No. 1 (See Evaporative hose No. 1 Installation Note .)
2	Catch tank
2	Evaporative hose No. 2
4	Purge solenoid valve connector
5	Evaporative hose No. 3 (See Evaporative hose No. 3 Installation Note .)
6	Purge solenoid valve bracket installation bolt
7	Purge solenoid valve (See Purge Solenoid Valve Installation Note .)

Install in the reverse order of removal.
