Purge Solenoid Valve Installation Note

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

Temporarily install the purge solenoid valve to the bracket.
Lift up and tighten the purge solenoid valve as shown in the figure.

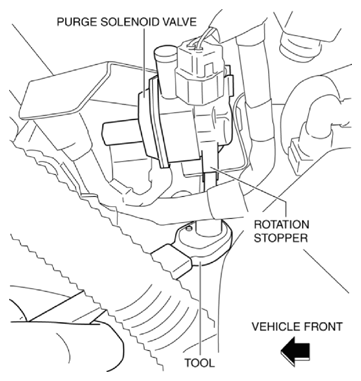

Fig 1: Tightening Solenoid Valve

Courtesy of MAZDA MOTORS CORP.
