Except U.S.A. And CANADA

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the floor under cover. (See FLOOR UNDER COVER REMOVAL/INSTALLATION .)
  2. Remove in the order indicated in the table.

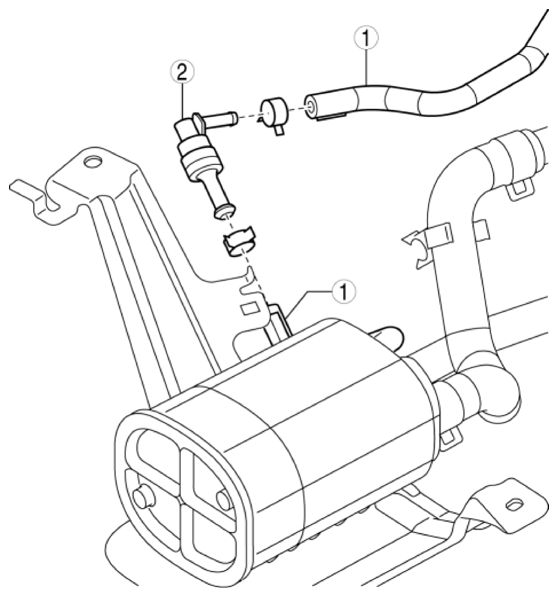

    Fig 1: Identifying Evaporative Hose And Check Valve
    G10916448Courtesy of MAZDA MOTORS CORP.
    COMPONENT DESCRIPTION

    1 Evaporative hose
    2 Check valve
  3. Install in the reverse order of removal.
