U.S.A. And CANADA

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
Remove the floor under cover (LH). (See FLOOR UNDER COVER REMOVAL/INSTALLATION .)
Disconnect the evaporative hose No. 2. (See CHARCOAL CANISTER REMOVAL/INSTALLATION .)

Remove in the order indicated in the table.

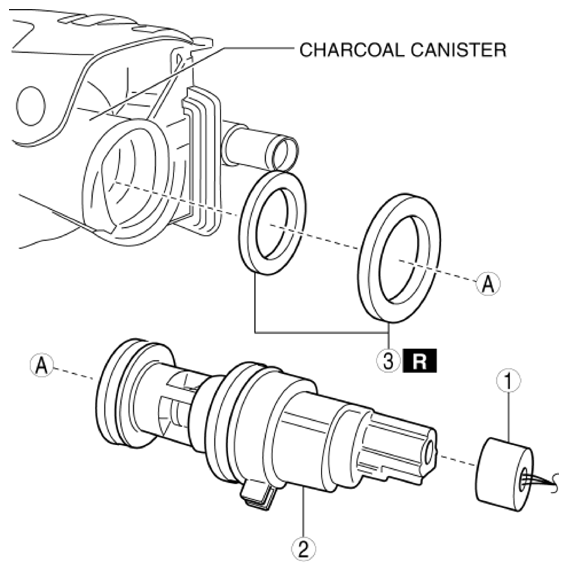

Fig 1: Identifying Canister Vent Solenoid Valve Related Components

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	CV solenoid valve connector
2	CV solenoid valve
3	O-ring

Install in the reverse order of removal.
