Dust cover removal note

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear mudguard (LH). (See MUDGUARD REMOVAL/INSTALLATION .)
  2. Release the dust cover tab using a flathead screwdriver as shown in the figure.

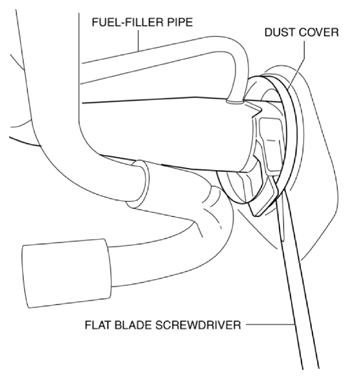

    Fig 1: Releasing Dust Cover Tab Using Flathead Screwdriver
    G10916336Courtesy of MAZDA MOTORS CORP.
  3. Remove the dust cover.
