Front Seat Adjuster Unit Removal/Installation: Driver-Side

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Switch the ignition off (LOCK).
  2. Disconnect the negative battery cable and wait for 1 min or more  . (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  3. Remove the following parts:
    1. Front seat (See FRONT SEAT REMOVAL/INSTALLATION .)
    2. Front seat side cover (See FRONT SEAT SIDE COVER REMOVAL/INSTALLATION .)
    3. Front buckle (See FRONT BUCKLE REMOVAL/INSTALLATION .)
  4. Remove the fasteners. (With power seat system/with position memory system)

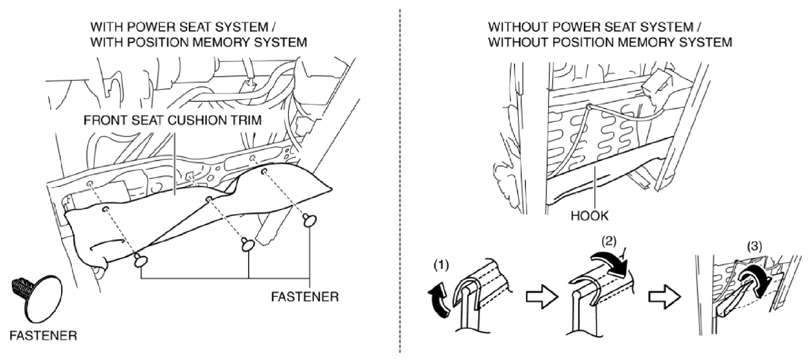

    Fig 1: Removing Front Seat Cushion Trim
    G10938586Courtesy of MAZDA MOTORS CORP.
  5. Set the front seat cushion trim aside. (With power seat system/with position memory system)
  6. Slide the hook in the order of arrows (1), (2), (3) shown in the figure and remove the front seat cushion trim. (Without power seat system/without position memory system)
  7. Using a flathead screwdriver, disconnect the connector in the direction of the arrow (2) while releasing tab in the direction of the arrow (1) shown in the figure.

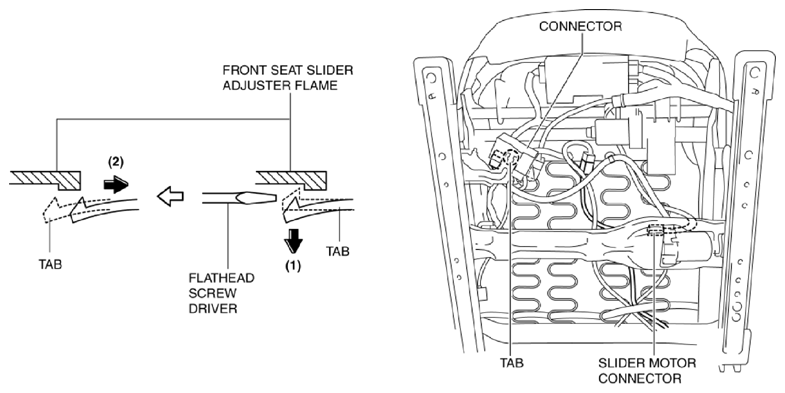

    Fig 2: Releasing Front Seat Slider Adjuster Flame Tabs
    G10938587Courtesy of MAZDA MOTORS CORP.
  8. Disconnect the slide motor connector.
  9. Remove bolts.

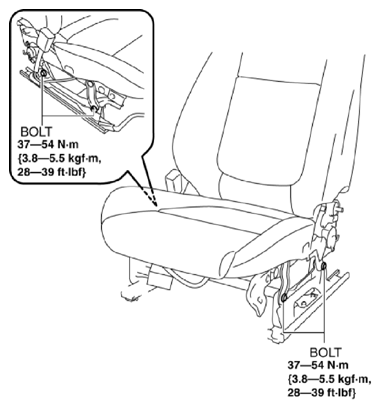

    Fig 3: Identifying Slide Motor Connector Bolts With Torque Specifications
    G10938588Courtesy of MAZDA MOTORS CORP.
  10. Remove the front seat adjuster unit.
  11. Install in the reverse order of removal.
