Magnetic Clutch is Disassembled/Assembled with A/C Compressor Removed from Vehicle: Notes

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

Disassemble in the order indicated in the table.

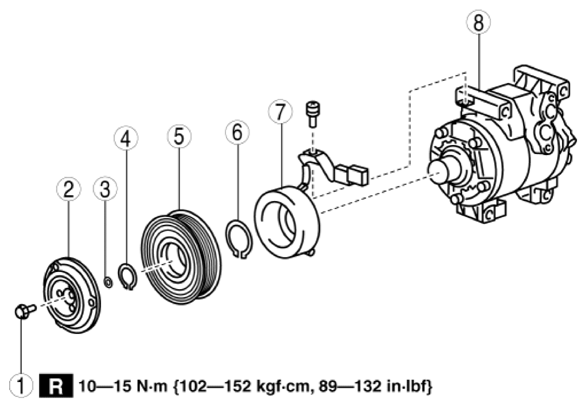

Fig 1: Exploded View Of Magnetic Clutch - Full-Auto Air Conditioner

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Bolt (See Bolt removal/installation note .)
2	Pressure plate
3	Shim
4	Snap ring (See Snap ring removal/installation note .)
5	A/C compressor pulley

Assemble in the reverse order of disassembly.
Adjust the magnetic clutch clearance. (See MAGNETIC CLUTCH ADJUSTMENT (AUTO A/C) .)
