Bolt removal/installation note

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
  1. When removing or installing the bolt, lock the A/C compressor pulley against rotation using the following procedure.
    CAUTION:
    • When connecting the positive battery cable to the magnetic clutch connector, use a cable with a female terminal of the correct size. Otherwise, load will be applied to the terminal, resulting in deformation or damage, and poor contact. In addition, the positive battery cable could disconnect from the connector resulting in a short circuit.
    1. Apply battery positive voltage to the magnetic clutch terminal and connect the A/C compressor body to the ground.

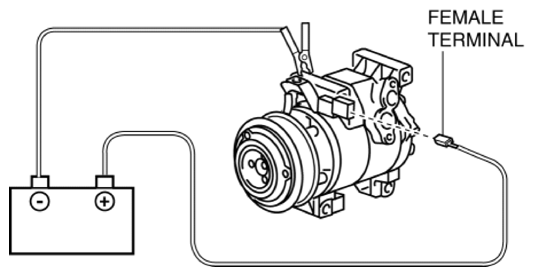

      Fig 1: Applying Battery Positive Voltage To Magnetic Clutch Terminal
      G10937570Courtesy of MAZDA MOTORS CORP.
    2. Wrap the drive belt, which is no longer of use, tightly around the A/C compressor pulley.

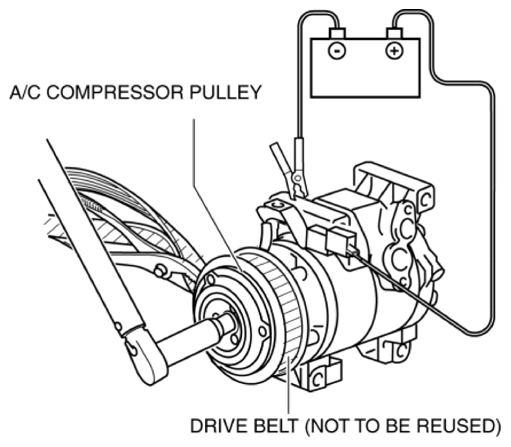

      Fig 2: Tightening A/C Compressor Pulley Nut
      G10937571Courtesy of MAZDA MOTORS CORP.
    3. Hold the drive belt in place with pliers.
    4. Remove/installation the bolt.

      Tightening torque

      • 10-15 N.m {102 -152 kgf.cm, 89 - 132 in.lbf}
  2. When installing a new A/C compressor body, replace the recommended bolt.
