Airflow Mode Actuator Removal/Installation (Auto A/C): Notes

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION .)
    2. Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
  3. Disconnect the airflow mode actuator connector.
  4. Remove the screws.

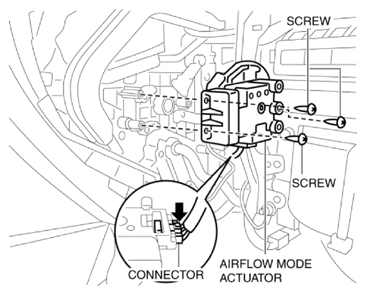

    Fig 1: Identifying Airflow Mode Actuator, Connector And Screws
    G10937548Courtesy of MAZDA MOTORS CORP.
  5. Remove the airflow mode actuator.
  6. Remove the airflow mode main link.
    Fig 2: Identifying Airflow Mode Main Link And Airflow Mode Actuator
    G10937549Courtesy of MAZDA MOTORS CORP.
  7. Remove the bracket.

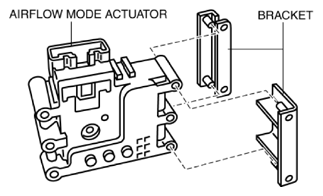

    Fig 3: Identifying Airflow Mode Actuator And Bracket
    G10937550Courtesy of MAZDA MOTORS CORP.
  8. Install in the reverse order of removal. (See AIRFLOW MODE ACTUATOR INSTALLATION NOTE .)
