Air Mix Actuator Removal/Installation (Auto A/C): Passenger-side

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION .)
    2. Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
  3. Disconnect the air mix actuator connector.

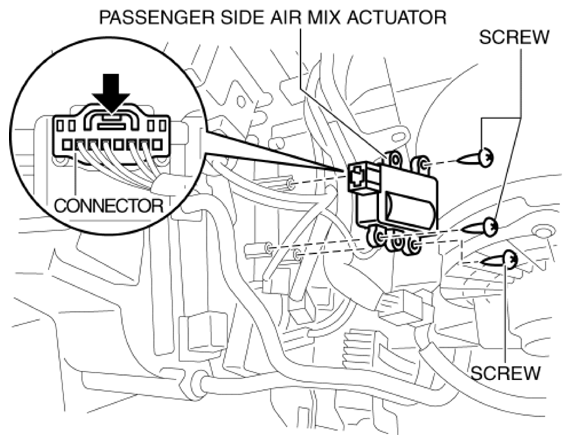

    Fig 1: Identifying Passenger Side Air Mix Actuator, Connector And Screws
    G10937543Courtesy of MAZDA MOTORS CORP.
  4. Remove the screws.
  5. Remove the passenger-side air mix actuator.
  6. Install in the reverse order of removal.
