High Beam Control (HBC) System Location Index

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

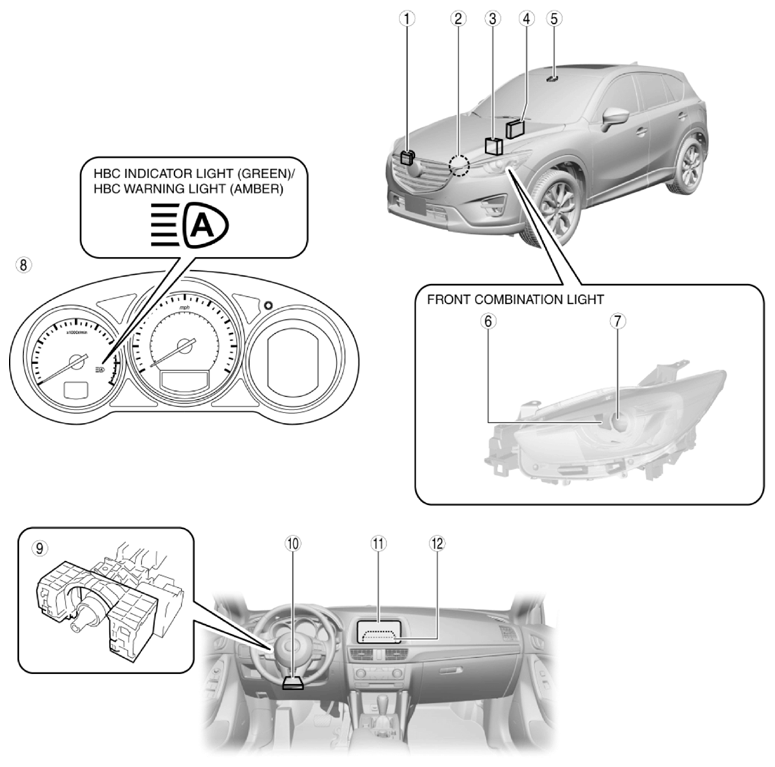

Fig 1: High Beam Control (HBC) System Components Location

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	DSC HU/CM (See DSC HU/CM REMOVAL/INSTALLATION .) (See DSC HU/CM INSPECTION .) (See DSC RELATED PARTS SENSOR INITIALIZATION PROCEDURE .)
2	TCM (See CONTROL VALVE BODY REMOVAL/INSTALLATION .)
3	PCM (See PCM REMOVAL/INSTALLATION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .) (See PCM INSPECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .) (See PCM CONFIGURATION (USING READ/WRITE FUNCTION) [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .) (See PCM CONFIGURATION (USING AS-BUILT DATA) [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
4	FBCM (See FRONT BODY CONTROL MODULE (FBCM) REMOVAL/INSTALLATION .) (See FRONT BODY CONTROL MODULE (FBCM) INSPECTION .) (See FRONT BODY CONTROL MODULE (FBCM) CONFIGURATION (USING READ/WRITE FUNCTION) .) (See FRONT BODY CONTROL MODULE (FBCM) CONFIGURATION (USING AS-BUILT DATA) .)
5	FSC (See FORWARD SENSING CAMERA (FSC) REMOVAL/INSTALLATION .) (See FORWARD SENSING CAMERA (FSC) CLIP REMOVAL/INSTALLATION .) (See FORWARD SENSING CAMERA (FSC) COVER REMOVAL/INSTALLATION .) (See FORWARD SENSING CAMERA (FSC) SHORT-CORD REMOVAL/INSTALLATION .) (See FORWARD SENSING CAMERA (FSC) AIMING .) (See FORWARD SENSING CAMERA (FSC) CONFIGURATION (USING READ/WRITE FUNCTION) .) (See FORWARD SENSING CAMERA (FSC) CONFIGURATION (USING AS-BUILT DATA) .)
6	Headlight HI (LED) (See HEADLIGHT BULB REMOVAL/INSTALLATION .)
7	Headlight LO (LED) (See HEADLIGHT BULB REMOVAL/INSTALLATION .)
8	Instrument cluster (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION .) (See INSTRUMENT CLUSTER DISASSEMBLY/ASSEMBLY .) (See INSTRUMENT CLUSTER INSPECTION .) (See INSTRUMENT CLUSTER CONFIGURATION (USING READ/WRITE FUNCTION) .) (See INSTRUMENT CLUSTER CONFIGURATION (USING AS-BUILT DATA) .) (See INSTRUMENT CLUSTER OPERATION RECORD .) (See INSTRUMENTATION/DRIVER INFO. PERSONALIZATION FEATURES SETTING PROCEDURE .)
9	Start stop unit (See LF CONTROL UNIT REMOVAL/INSTALLATION .) (See START STOP UNIT INSPECTION .) (See START STOP UNIT CONFIGURATION (USING READ/WRITE FUNCTION) .) (See START STOP UNIT CONFIGURATION (USING AS-BUILT DATA) .)
10	EPS control module (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION .) (See EPS CONTROL MODULE INSPECTION .)
11	Center display (See CENTER DISPLAY REMOVAL/INSTALLATION .) (See CENTER DISPLAY PERSONALIZATION FEATURES SETTING PROCEDURE .)
12	CMU (See CONNECTIVITY MASTER UNIT (CMU) REMOVAL/INSTALLATION .) (See CONNECTIVITY MASTER UNIT (CMU) DISASSEMBLY/ASSEMBLY .)
