FSC Clip A

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
  2. Remove the following parts:
    1. Cover (See FORWARD SENSING CAMERA (FSC) COVER REMOVAL/INSTALLATION .)
    2. Forward sensing camera (FSC) (See FORWARD SENSING CAMERA (FSC) REMOVAL/INSTALLATION .)
    3. Laser sensor (See LASER SENSOR REMOVAL/INSTALLATION .)
  3. Insert a tape-wrapped flathead screwdriver into the gap between the base and FSC clip A.

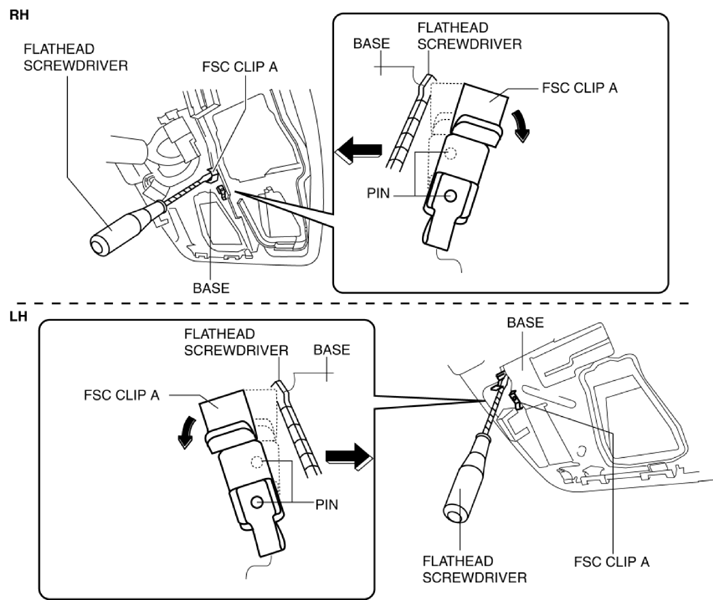

    Fig 1: Inserting Tape-Wrapped Flathead Screwdriver Into Gap Between Base And FSC Clip A
    G10939968Courtesy of MAZDA MOTORS CORP.
  4. Move the flathead screwdriver in the direction of the arrow shown in the figure and rotate FSC clip A.
  5. In addition, rotate FSC clip A, detach the base pin and FSC clip A, and then remove FSC clip A.

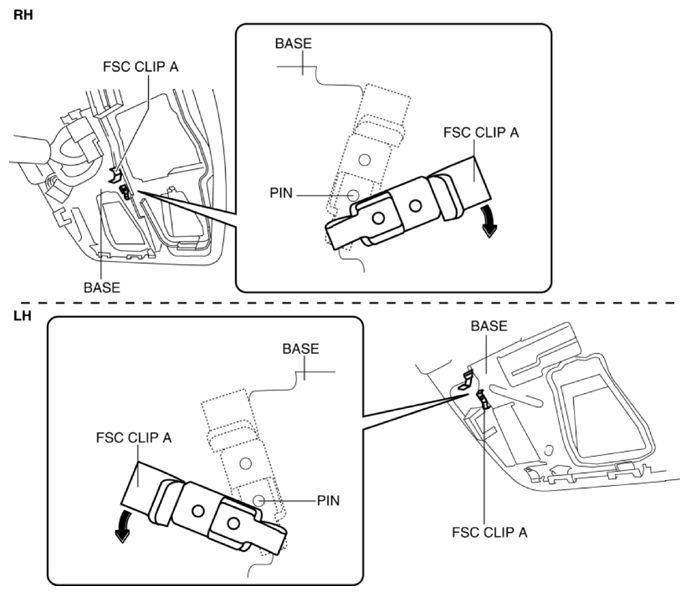

    Fig 2: Rotating FSC Clip A
    G10939969Courtesy of MAZDA MOTORS CORP.
  6. Install in the reverse order of removal.
  7. If the FSC clip is replaced, perform the FSC aiming (See FORWARD SENSING CAMERA (FSC) AIMING .).
CAUTION:
  • If FSC aiming is not performed after replacing the FSC clips, the high beam control (HBC) system and the lane departure warning system (LDWS) will not operate normally because the shooting angle of the FSC camera deviates. If the FSC clips are replaced, perform the FSC aiming.
