Mirror Glass Adjustment
WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
- Remove the following parts:
- Inner garnish (See INNER GARNISH REMOVAL/INSTALLATION .)
- Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION .)
- Power outer mirror (See POWER OUTER MIRROR REMOVAL/INSTALLATION .)

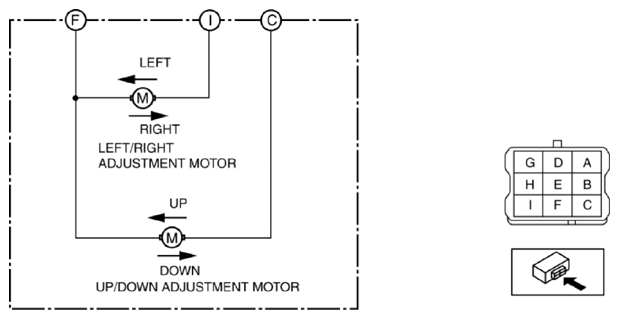

- Apply battery positive voltage and connect the ground to the power outer mirror terminals and inspect the power outer mirror operation.
- If the power outer mirror does not operate as indicated in the chart, replace the power outer mirror.
| Mirror operation direction | Battery positive voltage connect terminal | Ground connect terminal |
|---|---|---|
| Up | C | F |
| Down | F | C |
| Left | I | F |
| Right | F | I |
