Blind Spot Monitoring (BSM) Warning Indicator Light Inspection
WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
- Remove the following parts:
- Inner garnish (See INNER GARNISH REMOVAL/INSTALLATION .)
- Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION .)
- Power outer mirror (See POWER OUTER MIRROR REMOVAL/INSTALLATION .)
- Outer mirror glass (See OUTER MIRROR GLASS REMOVAL .) (See OUTER MIRROR GLASS INSTALLATION .)

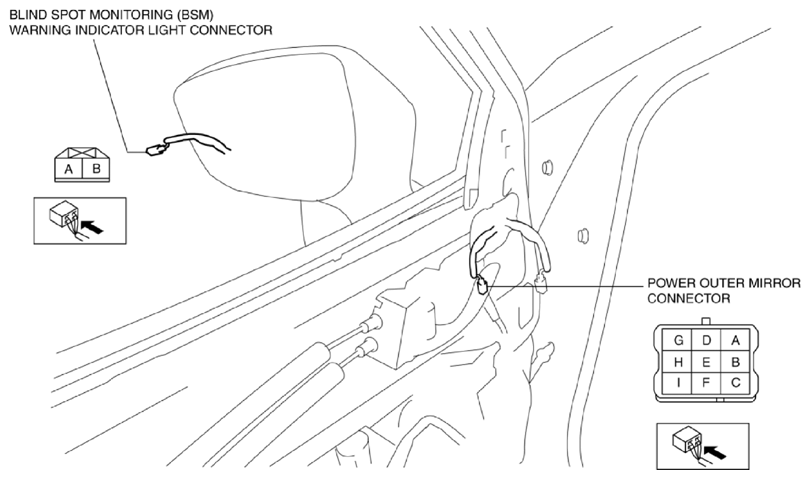

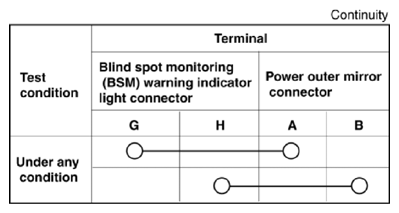

- Verify that the continuity between blind spot monitoring (BSM) warning indicator light connector terminals is as indicated in the chart.
- If not as indicated in the chart, replace the power outer mirror. (See POWER OUTER MIRROR REMOVAL/INSTALLATION .)
