Wheel Hub Component Removal/Installation (2WD): Notes
WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
- Performing the following procedures without first removing the rear ABS wheel-speed sensor may possibly cause an open circuit in the wiring harness if it is pulled by mistake. Before performing the following procedures, remove the rear ABS wheel-speed sensor (axle side) and fix it to an appropriate place where the sensor wiring harness will not be pulled by mistake while servicing the vehicle.
- Switch the ignition ON (engine off).
- Release the electric parking brake.
- Switch the ignition off.
- When working on the left side of the vehicle, disconnect the auto leveling sensor link. (See AUTO LEVELING SENSOR REMOVAL/INSTALLATION .)
- Remove in the order indicated in the table.
- Install in the reverse order of removal.
- Inspect the rear wheel alignment. (See REAR WHEEL ALIGNMENT

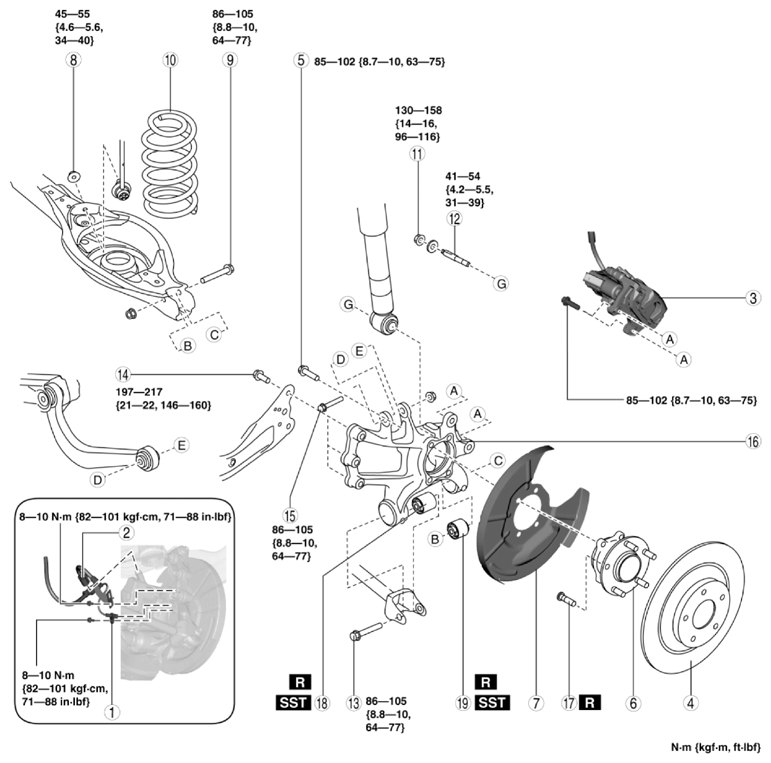

.)COMPONENT DESCRIPTION
1 ABS wheel-speed sensor 2 Electric parking brake motor gear unit connector 3 Brake caliper component
(See Brake Caliper Component Removal Note .)4 Disc plate 5 Bolt (wheel hub)
(See Bolt (Wheel Hub) Installation Note .)6 Wheel hub 7 Dust cover 8 Rear stabilizer control link lower side nut 9 Rear lower arm outer bolt
(See Rear Lower Arm Outer Bolt Removal Note .)10 Rear coil spring
(See REAR COIL SPRING REMOVAL/INSTALLATION .)11 Rear shock absorber lower nut 12 Stud bolt 13 Rear lateral link outer bolt
(See REAR LATERAL LINK REMOVAL/INSTALLATION .)14 Rear trailing link installation bolt
(See REAR LATERAL LINK REMOVAL/INSTALLATION .)15 Bolt (rear upper arm outer side) 16 Hub support 17 Wheel hub bolt
(See Wheel Hub Bolt Removal Note .)
(See Wheel Hub Bolt Removal Note .)18 Hub support bushing (front)
(See Hub Support Bushing (Front) Removal Note .)
(See Hub Support Bushing (Front) Installation Note .)19 Hub support bushing (rear)
(See Hub Support Bushing (Rear) Removal Note .)
(See Hub Support Bushing (Rear) Installation Note .)
