Without Washer Fluid-level Sensor

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
  2. Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION .)
  3. Remove the bolt.

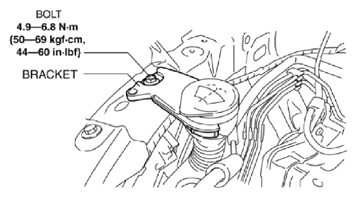

    Fig 1: Removing Bracket Bolt
    G10939388Courtesy of MAZDA MOTORS CORP.
  4. Remove the bracket.
  5. Disconnect the connectors.

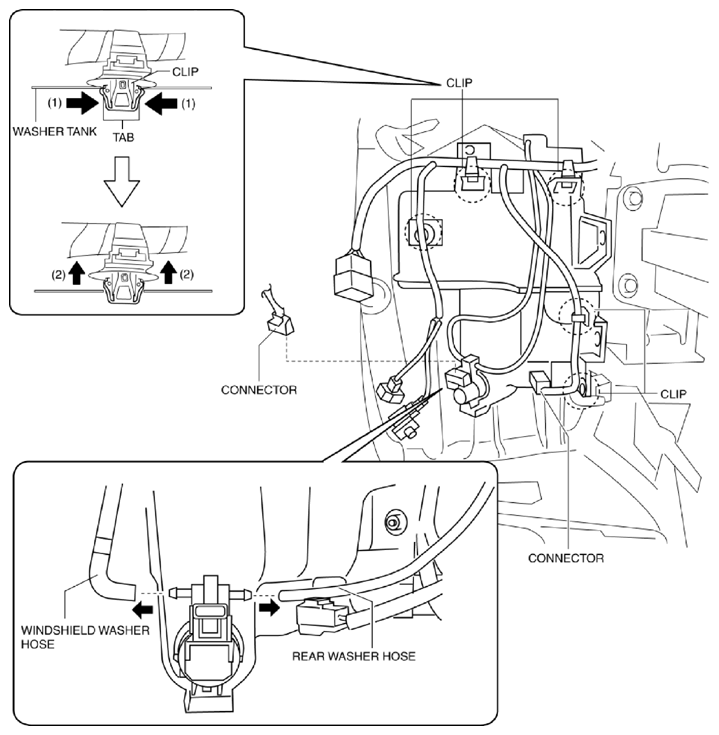

    Fig 2: Disconnecting Windshield Washer Hose Connectors
    G10939389Courtesy of MAZDA MOTORS CORP.
  6. Disconnect the windshield washer hose.
  7. Disconnect the rear washer hose.
  8. While pressing tabs of clips in the direction of the arrows (1) shown in the figure, remove it in the direction of the arrow (2).
  9. Remove the windshield washer hose from the hooks.

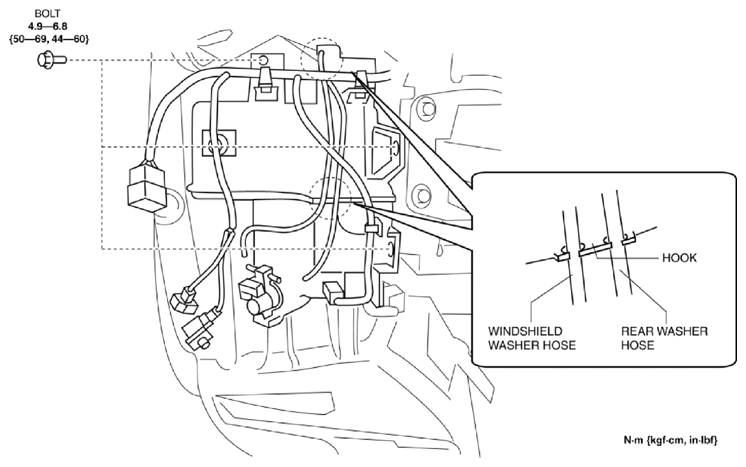

    Fig 3: Removing Windshield Washer Hose From Hooks
    G10939390Courtesy of MAZDA MOTORS CORP.
  10. Remove the rear washer hose from the hooks.
  11. Remove bolts.
  12. Remove the washer tank positioning hook and notch from the vehicle and remove the washer tank.

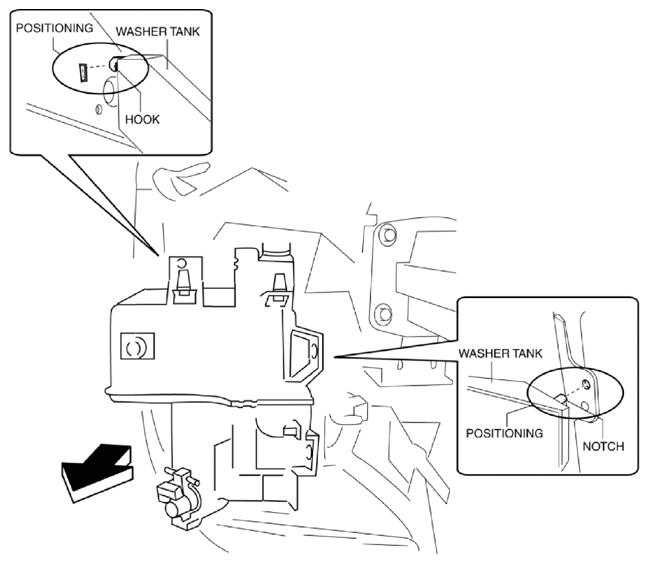

    Fig 4: Removing Washer Tank Positioning Hook And Notch From Vehicle
    G10939391Courtesy of MAZDA MOTORS CORP.
  13. Install in the reverse order of removal.
