Washer Motor Inspection

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION .)
Disconnect the washer motor connector from the washer motor.

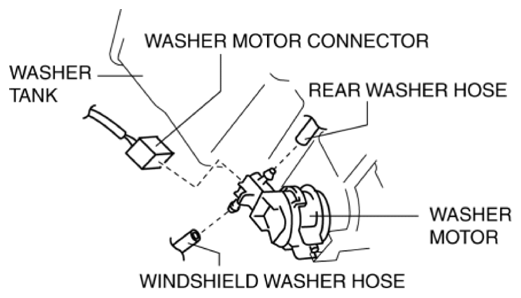

Fig 1: Disconnecting Washer Motor Connector From Washer Motor
Courtesy of MAZDA MOTORS CORP.
Disconnect the windshield washer hose from the washer motor.
Disconnect the rear washer hose from the washer motor.
WARNING:
- Water sprayed on the battery and ground could cause electrocution. When performing the washer motor inspection, prepare a container to collect washer fluid and be careful not to spray washer fluid.
After connecting washer motor terminal A to the positive battery terminal, and terminal B to ground, verify that washer fluid sprays from the front side of the washer motor.

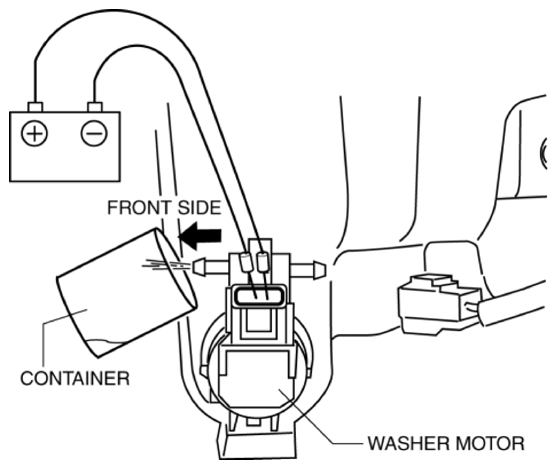

Fig 2: Connecting Washer Motor Terminal A To Positive Battery Terminal (Front Side)
Courtesy of MAZDA MOTORS CORP.

Fig 3: Identifying Washer Motor Connector Terminals (Front Side)
Courtesy of MAZDA MOTORS CORP.
- If there is any malfunction, replace the washer motor. (See WASHER MOTOR REMOVAL/INSTALLATION .)
After connecting washer motor terminal B to the positive battery terminal, and washer motor terminal A to ground, verify that washer fluid sprays from the rear side of the washer motor.

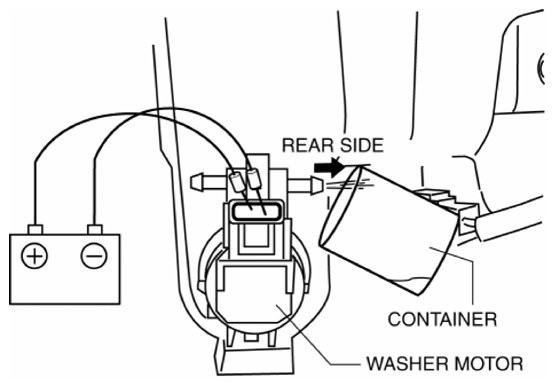

Fig 4: Connecting Washer Motor Terminal B To Positive Battery Terminal (Rear Side)

Courtesy of MAZDA MOTORS CORP.

Fig 5: Identifying Washer Motor Connector Terminals (Rear Side)

Courtesy of MAZDA MOTORS CORP.

If there is any malfunction, replace the washer motor. (See WASHER MOTOR REMOVAL/INSTALLATION .)
