Rear Oil Seal Replacement: Notes

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the transaxle. (See MANUAL TRANSAXLE REMOVAL/INSTALLATION (MTX).) (See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION [FW6A-EL] (ATX, 2WD).) (See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION [FW6AX-EL] (ATX, AWD).)
  2. Remove the flywheel (MTX) or the drive plate (ATX). (See CLUTCH UNIT REMOVAL/INSTALLATION (MTX).) (See DRIVE PLATE REMOVAL/INSTALLATION (ATX).)
  3. Remove in the order indicated in the table.
  4. Install in the reverse order of removal.

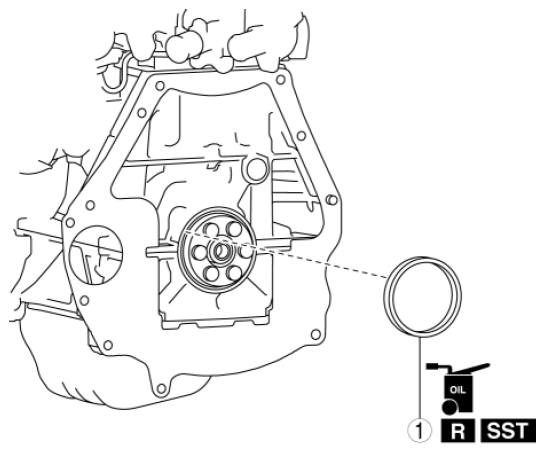

Fig 1: Removing Rear Oil Seal
G10916078Courtesy of MAZDA MOTORS CORP.
COMPONENT DESCRIPTION

1 Rear oil seal
(See Rear Oil Seal Removal Note .)
(See Rear Oil Seal Installation Note .)
