Rear Oil Seal Installation Note

1. Apply clean engine oil to the inner surface of a new rear oil seal.
2. Insert the rear oil seal into the cylinder block by hand.
3. Tap the oil seal in evenly using the SST  and a hammer.

   SKYACTIV-G 2.0

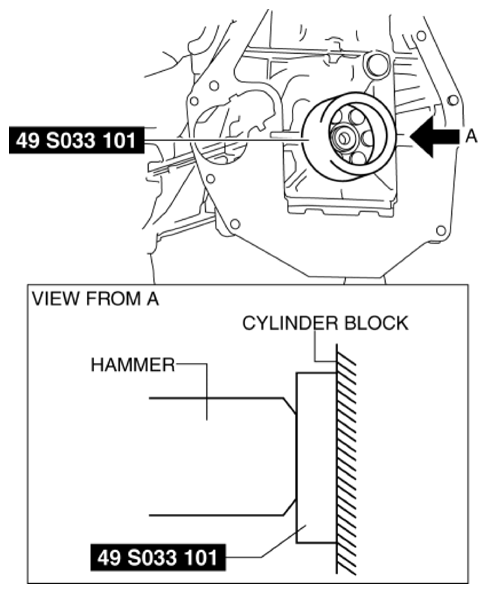

   Fig 1: Tapping Oil Seal Using SST And Hammer (SKYACTIV-G 2.0)

   Courtesy of MAZDA MOTORS CORP.

   SKYACTIV-G 2.5

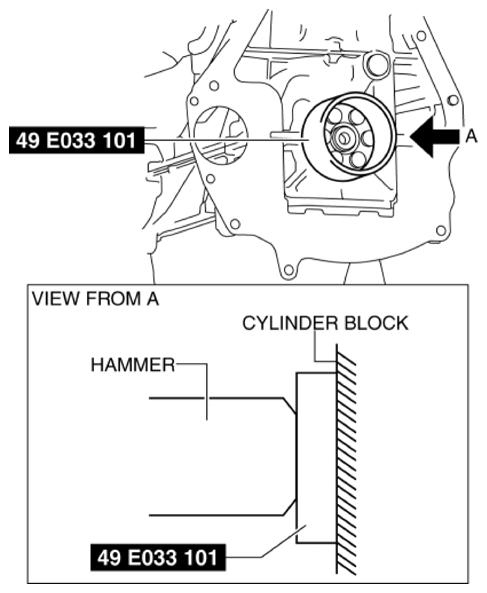

   Fig 2: Tapping Oil Seal Using SST And Hammer (SKYACTIV-G 2.5)

   Courtesy of MAZDA MOTORS CORP.

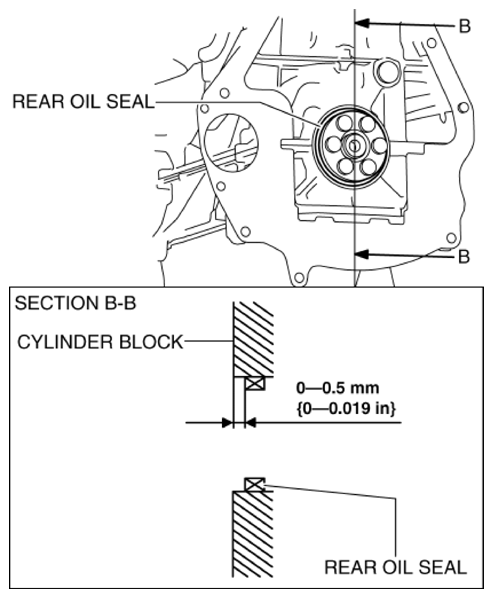

   Fig 3: Pressing Rear Oil Seal On Amount

   Courtesy of MAZDA MOTORS CORP.

Rear oil seal press on amount

• 0-0.5 mm {0-0.019 in}
