No. 4 engine mount rubber removal note

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

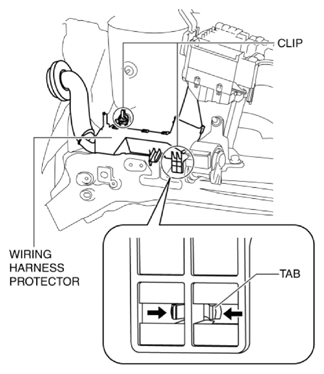

Remove the clips shown in the figure and set the wiring harness protector aside.

Fig 1: Removing Clips
Courtesy of MAZDA MOTORS CORP.
Remove the front under cover No. 2. (See FRONT UNDER COVER No. 2 REMOVAL/INSTALLATION .)
CAUTION:
- To prevent damage to the transaxle, support the transaxle using the following methods.

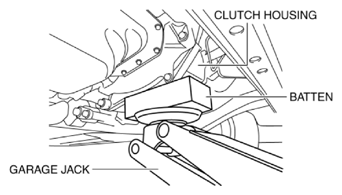

  - MTX: Support the clutch housing using a batten of appropriate size.

    Fig 2: Supporting Clutch Housing
    Courtesy of MAZDA MOTORS CORP.

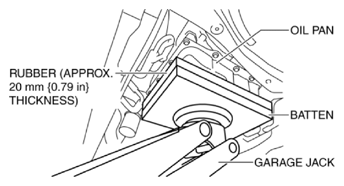

  - ATX: Place rubber of appropriate size (approx. 20 mm {0.79 in} thickness) on a batten which is large enough to cover and support the oil pan.
  Fig 3: Supporting Oil Pan
  Courtesy of MAZDA MOTORS CORP.
Before removing the No. 4 engine mount rubber, support the transaxle using a commercially available engine lifter or garage jack.
Remove the No. 4 engine mount rubber.
