Back-Up Light Switch Removal/Installation

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
Remove the front under cover No. 2. (See FRONT UNDER COVER No. 2 REMOVAL/INSTALLATION .)

Remove in the order indicated in the table.

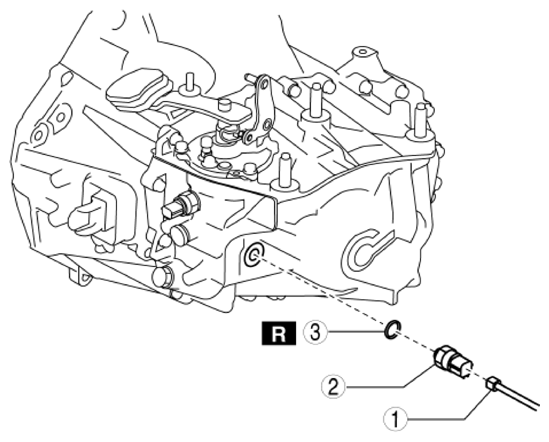

Fig 1: Identifying Back-Up Light Switch Components

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Connector
2	Back-up light switch
3	Gasket

Install in the order indicated in the table.

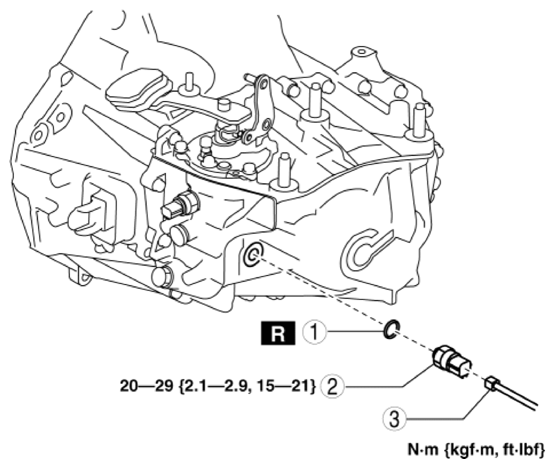

Fig 2: Identifying Back-Up Light Switch Components With Torque Specifications

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Gasket
2	Back-up light switch
3	Connector

Install the front under cover No. 2. (See FRONT UNDER COVER No. 2 REMOVAL/INSTALLATION .)
Connect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
