Rear Splash Shield

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Set the rear over fender aside. (See REAR OVER FENDER REMOVAL/INSTALLATION .)
  2. Remove screws D.

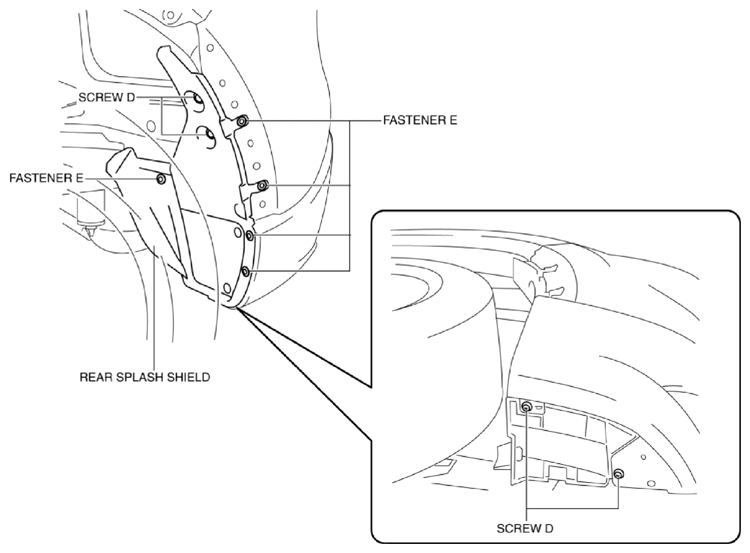

    Fig 1: Identifying Rear Splash Shield Fastener
    G10938964Courtesy of MAZDA MOTORS CORP.
  3. Remove fasteners E.
  4. Remove the rear splash shield.
  5. Install in the reverse order of removal.
