Front Splash Shield No. 1

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Set the mudguard aside. (See MUDGUARD REMOVAL/INSTALLATION .)
  2. Remove fasteners A.

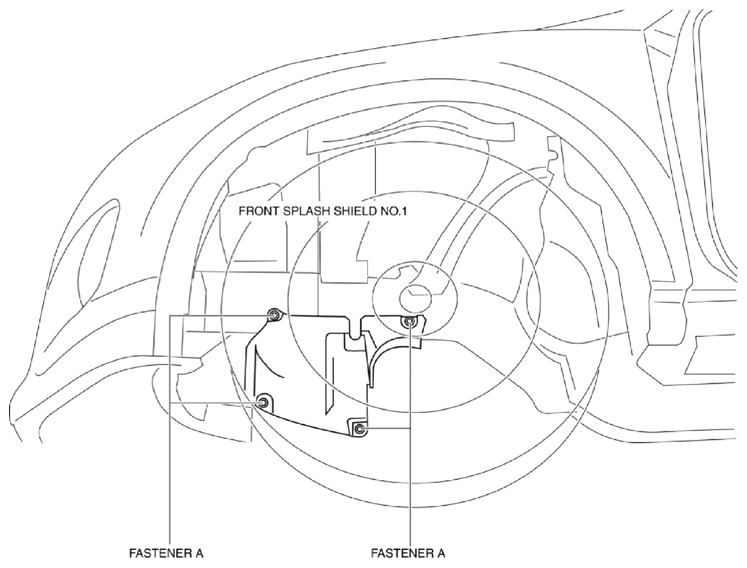

    Fig 1: Identifying Front Splash Shield Bolts
    G10938962Courtesy of MAZDA MOTORS CORP.
  3. Remove the front splash shield No. 1.
  4. Install in the reverse order of removal.
