Rear Spoiler Removal/Installation: Removal

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

Always wear gloves when using a utility knife. Using a utility knife with bare hands can cause injury.

NOTE:

Remove the rear spoiler and the garnish as a single unit.

Remove the liftgate upper trim (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION .)
Remove caps A.

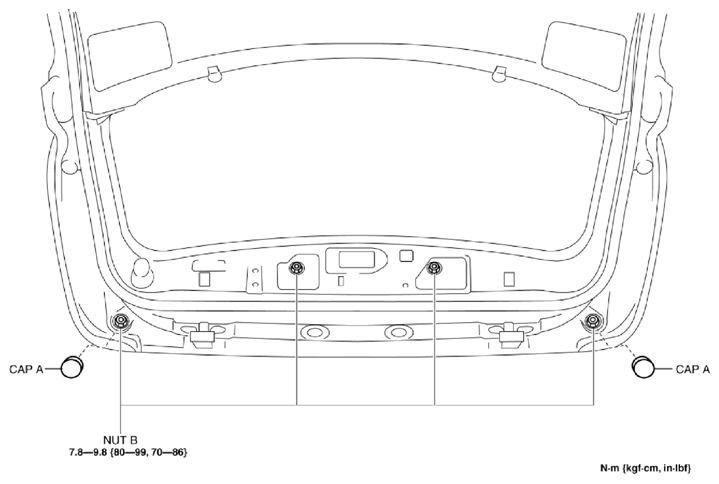

Fig 1: Identifying Liftgate Upper Trim Caps With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
Remove nuts B.
Attach a piece of wire between the liftgate striker and liftgate latch to hold the liftgate in the half-opened position as shown below.

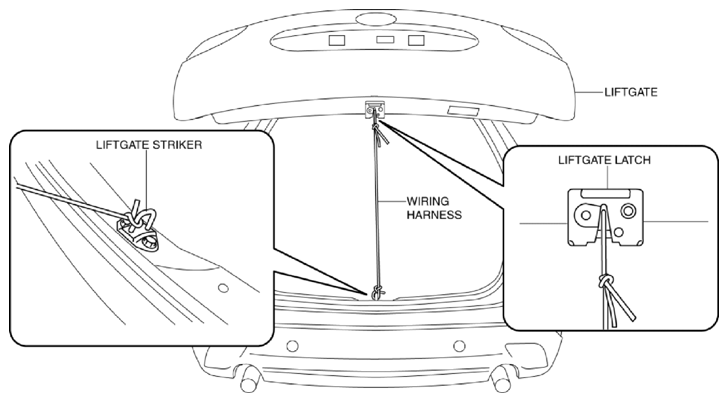

Fig 2: Attaching Wire Piece Between Liftgate Striker And Liftgate Latch
Courtesy of MAZDA MOTORS CORP.
Insert a tape-wrapped flathead screwdriver in the locations shown below to remove clips C and D in the direction of the arrow (1).

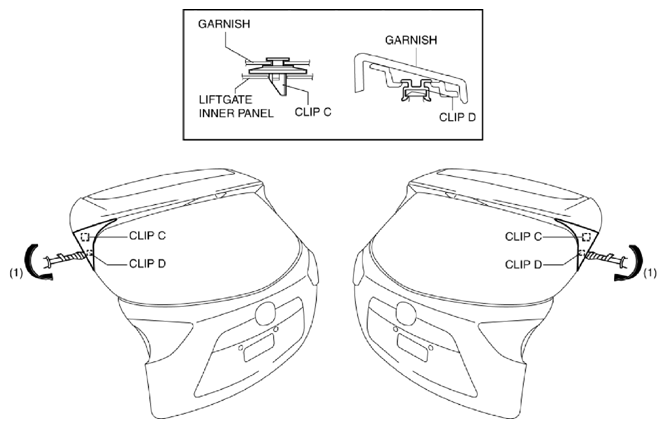

Fig 3: Removing Liftgate Inner Panel Clips
Courtesy of MAZDA MOTORS CORP.
Using a utility knife, carefully remove the double-sided adhesive tape in the locations shown below.
CAUTION:
- Be careful not the damage the vehicle's paint during tape removal.

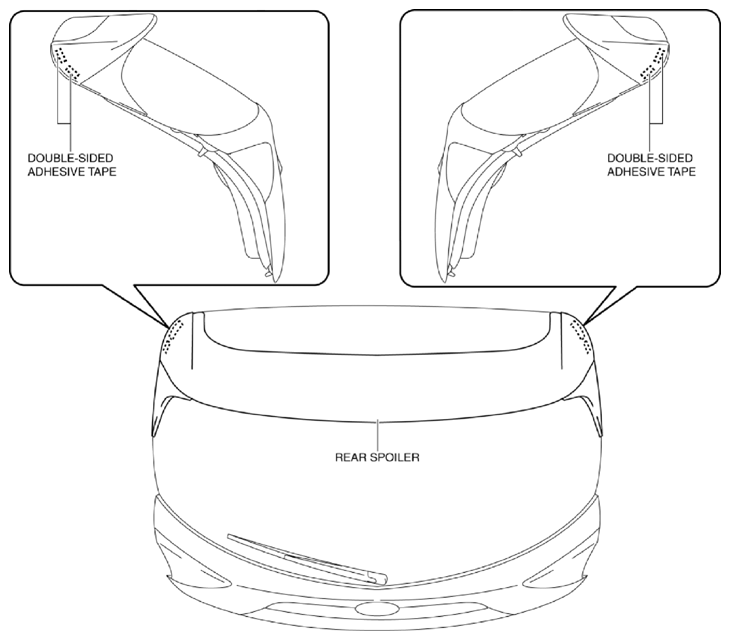

Fig 4: Identifying Rear Spoiler
Courtesy of MAZDA MOTORS CORP.
Pull the rear spoiler in the direction of the arrows in the order of (1), (2) and remove it while detaching clips E.

CAUTION:

When removing the rear spoiler clips E, the rear spoiler may fall and be damaged. Perform the rear spoiler clip removal using two people.

NOTE:

Install the rear spoiler and the garnish as a single unit.

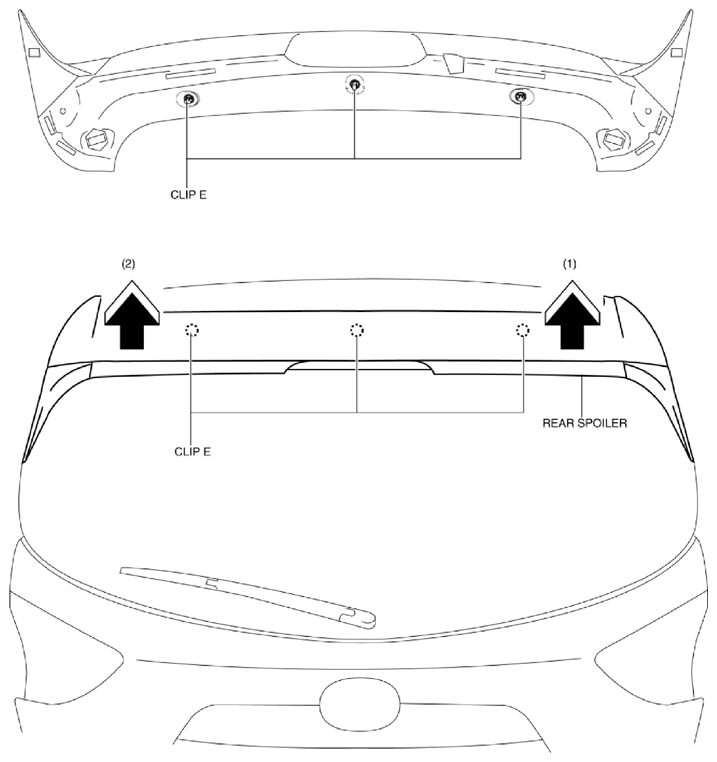

Fig 5: Identifying Rear Spoiler Clips

Courtesy of MAZDA MOTORS CORP.
