Radiator Grille Disassembly/Assembly: Notes

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

Disassemble in the order indicated in the table.

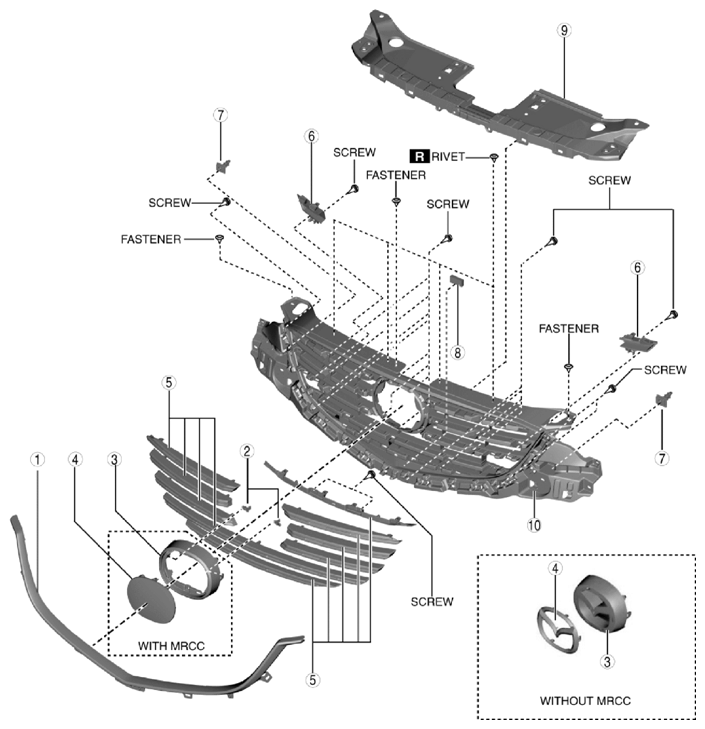

Fig 1: Exploded View Of Radiator Grille

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Lower grille melding
2	Clip
3	Ornament base
4	Ornament
5	Grille garnish
6	Protector
7	Locator pin
8	Seal rubber
9	Grille bracket (See Rivet Removal Note )
10	Radiator grille reinforcement

Assemble in the reverse order of disassembly.
