Rivet Removal Note

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

If an inappropriate drill diameter is used, the front bumper face and the radiator grille may be damaged.

When removing the rivet, perform the following procedure:
1. Secure the rivet pin from the radiator grille reinforcement side using needle-nose pliers.

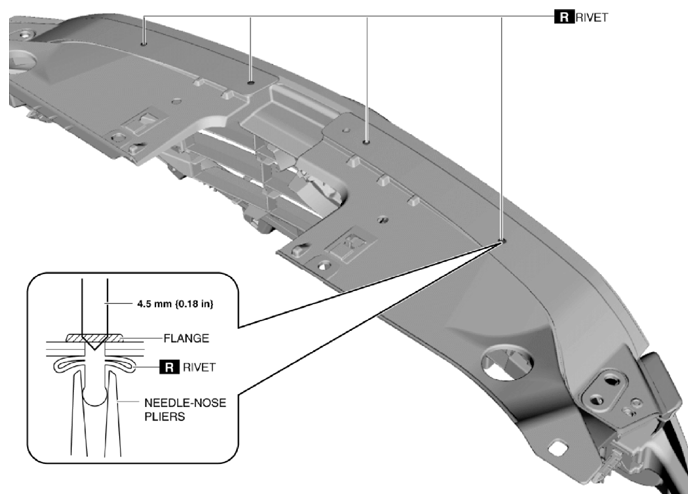

  Fig 1: Securing Rivet Pin From Radiator Grille Reinforcement Side Using Needle-Nose Pliers
  Courtesy of MAZDA MOTORS CORP.
2. Use the following drill diameter.
  Drill diameter:
  - 4.5 mm {0.18 in}
Remove the rivet flange using a drill and remove the rivet.

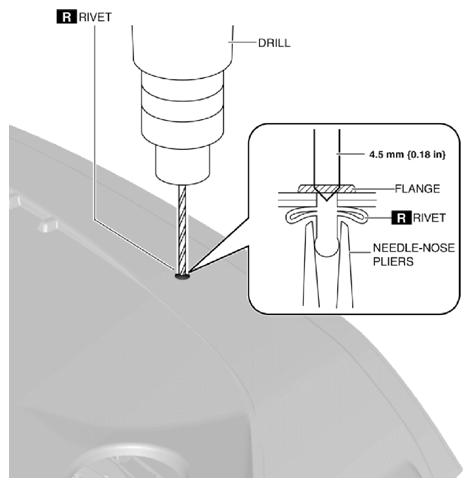

Fig 2: Removing Rivet Flange Using Drill
Courtesy of MAZDA MOTORS CORP.
Remove any rivet shavings from the front bumper face and the radiator grille.
