Clutch Master Cylinder Removal/Installation: Installation

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

Install the clutch master cylinder using the following procedure:

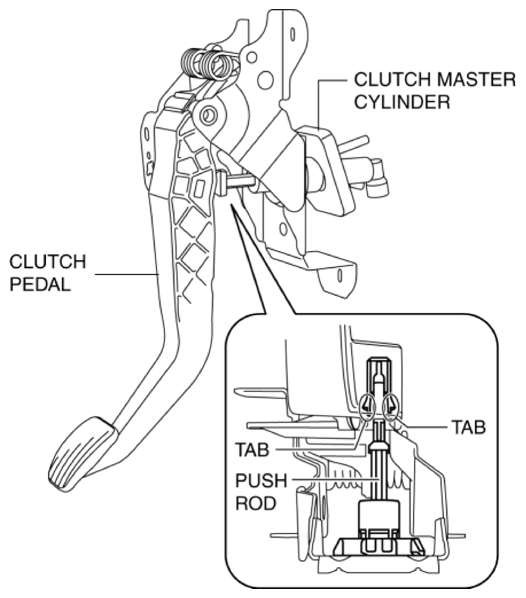

1. Engage the tabs of the push rod with the clutch pedal as shown in the figure.

  Fig 1: Installing Push Rod Tabs With Clutch Pedal
  Courtesy of MAZDA MOTORS CORP.

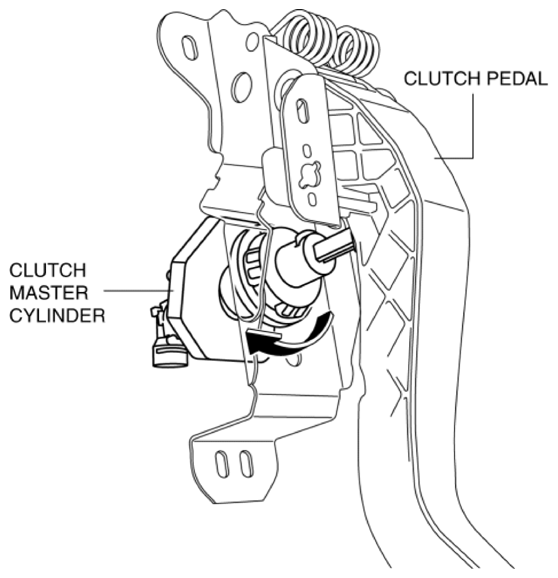

2. Rotate the clutch master cylinder in the direction shown until it stops.

  Fig 2: Rotating Clutch Master Cylinder
  Courtesy of MAZDA MOTORS CORP.

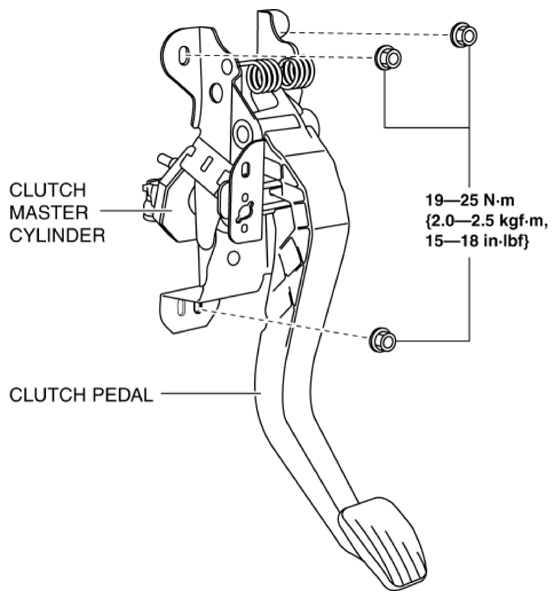

3. Install the clutch pedal and the clutch master cylinder as a single unit.

  Fig 3: Identifying Clutch Pedal And Clutch Master Cylinder Components With Torque Specifications
  Courtesy of MAZDA MOTORS CORP.
Connect the clutch reserve hose to clutch master cylinder. (See CLUTCH PIPE AND HOSE REMOVAL/INSTALLATION .)
Connect the clutch pipe and hose No. 1 to clutch master cylinder. (See CLUTCH PIPE AND HOSE REMOVAL/INSTALLATION .)
Connect the steering shaft. (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION .)
Install the joint cover. (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION .)
Bleed the air from the clutch system. (See CLUTCH FLUID REPLACEMENT/AIR BLEEDING .)
Inspect the clutch pedal. (See CLUTCH PEDAL INSPECTION .)
Install a new starter interlock switch. (See STARTER INTERLOCK SWITCH REMOVAL/INSTALLATION .)
Install a new clutch pedal position switch. (See CLUTCH PEDAL POSITION SWITCH REMOVAL/INSTALLATION .)
Install the battery component (battery, battery tray and PCM component). (See BATTERY REMOVAL/INSTALLATION .)
Install the air cleaner component (air cleaner, air hose). (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)
Connect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
Fully depress the clutch pedal, and verify that the engine starts.
