Without Dynamic damper (Mexico)

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

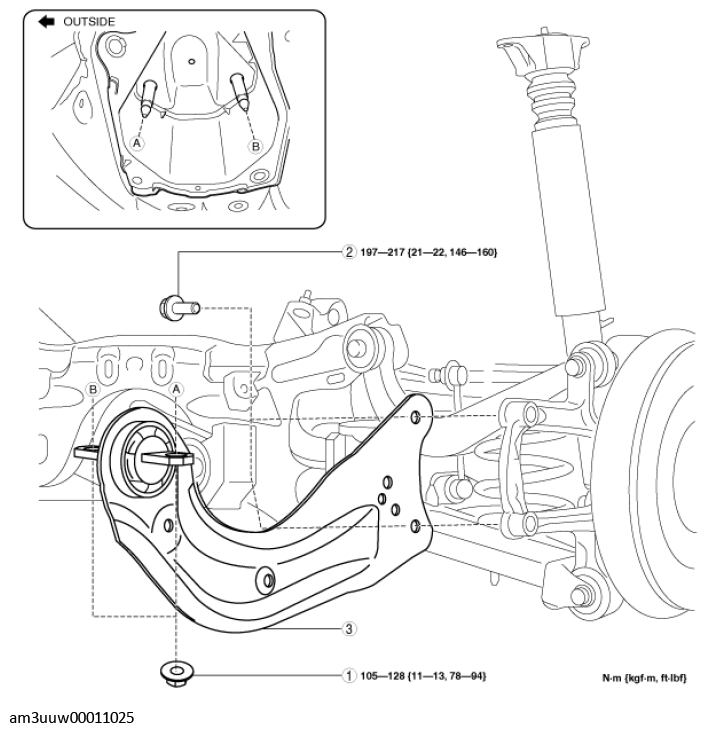

Fig 1: Installing Rear Trailing Link Without Dynamic Damper (MEXICO)

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Rear trailing link installation nut
2	Rear trailing link installation bolt
3	Rear trailing link (See Rear Trailing Link Installation Note .)
