Rear Trailing Link Installation Note

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the rear trailing link installation bolts using a jack.

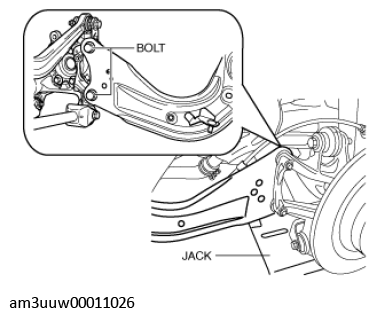

    Fig 1: Installing Rear Trailing Link Installation Bolts Using Jack
    G11539645Courtesy of MAZDA MOTORS CORP.
  2. Install the rear trailing link installation nut.
